Description
BG 842 Moulded Round Edge | White | 2 Gang 10AX 2 Way Plate Switch
- 20A 16AX Rated
- Easy to install, supplied with fixing screws and installation instructions
- 2 way switching allows for a second switch position in a circuit
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Minimum mounting box depth: 16mm
- Certified to BS60669-1

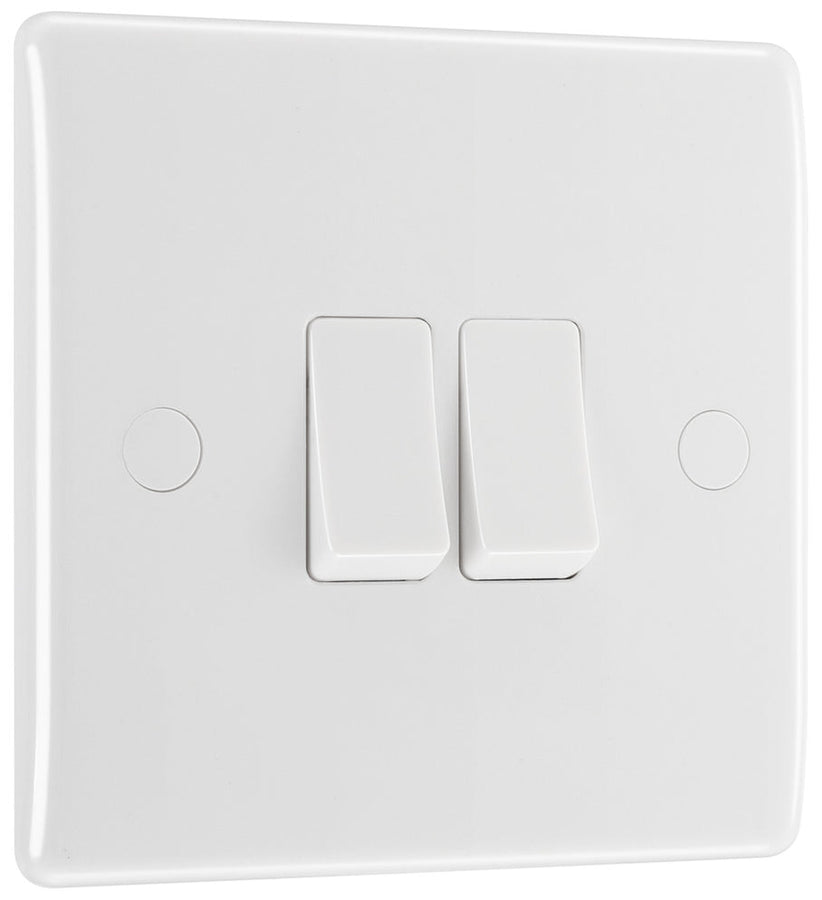

This Nexus 800 series white moulded 20A 16AX double light switch from British General can operate 2 different lights whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs). Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with soft rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 16 |
| Terminal Capacity (# x mm²) | 1 x 4, 2 x 2.5, 4 x 1.0 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
