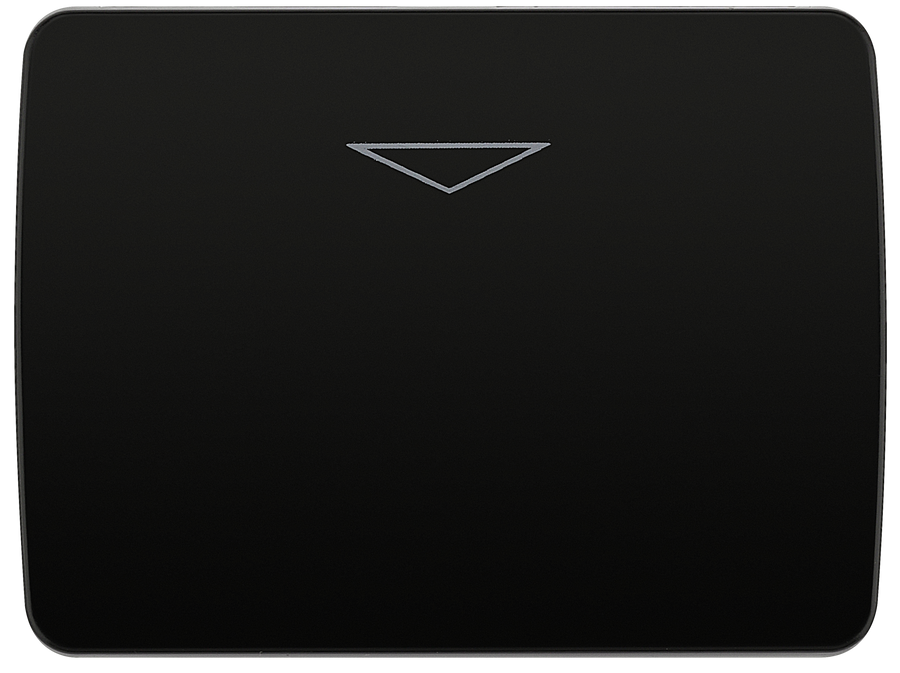

BG EMKYCSB Euro Module 16A Key Card Switch (50 x 50) - Black
- Black finish
- Dimensions: 50 x 50mm
- Load rating: 1800W resistive, 800W inductive
- 30 second power-off delay
- Locator LED
- Colour coded terminals with backed-out captive screws
- Minimum mounting box depth: 47mm
- Designed and manufactured to BS EN 60669-2-1
The BG Electrical Euro Module EMKYCSB is a black hotel key card switch, rated at 16A and 2 modules wide.
With an 1800W resistive load and 800W inductive load tolerance, the EMKYCSW is suitable for a wide range of commercial door locking systems. It features a 30 second power-off delay and locator LED to make it practical for use even in concealed or dimly-lit areas.
To use, simply attach the desired front plate onto a suitable mounting box (minimum depth required 47mm), wire up the EMKYCSB as you would a traditional outlet, and then slot the module into the frame until you hear a click. It also comes with colour coded terminals with backed-out and captive screws to further aid easy installation.
The EMKYCSB is manufactured to BS EN 60669-2-1 to comply with national building standards. For peace of mind, it comes with a 25-year manufacturer’s warranty as per the entire BG Euro Module range.
| General Colour | Black |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Style Type | Key |
| Switch Type (Ways & Poles) | Single Pole |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
