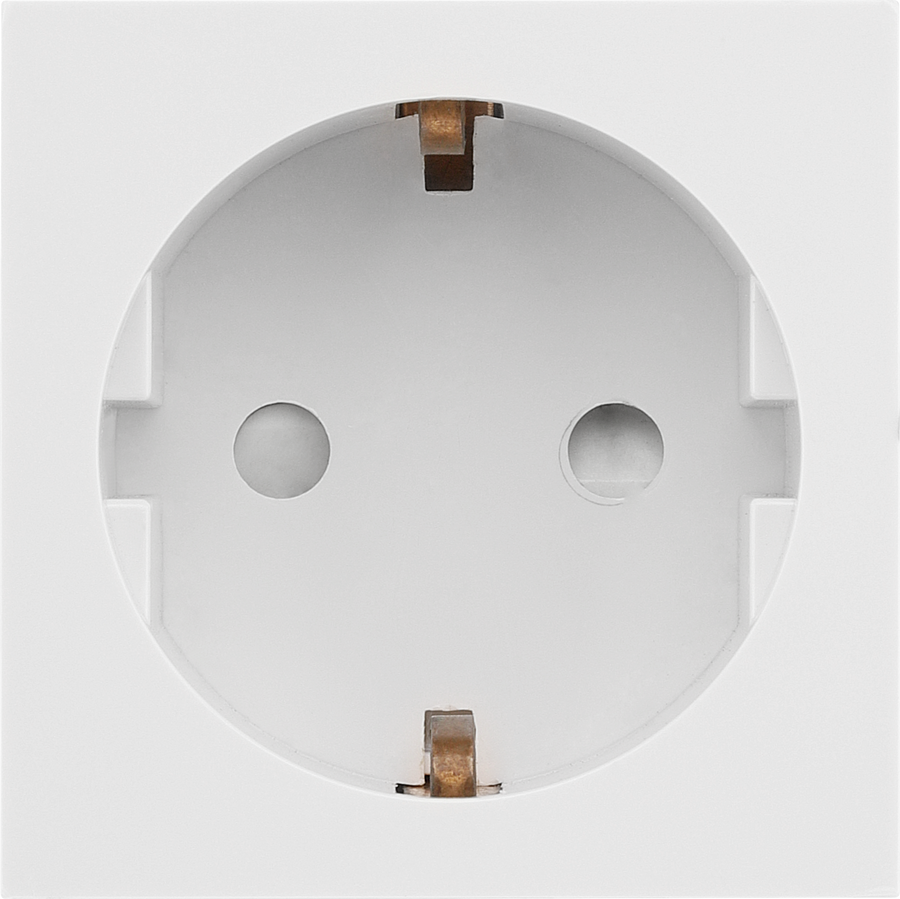

BG EMSCHSW Euro Module 16A Schuko Unswitched Socket - White
- 16A rating
- 1 gang Schuko unswitched socket
- Size: 50 x 50mm
- Colour: White
The BG Electrical Euro Module EMSCHSW is a white unswitched Schuko socket, rated at 16A and 2 modules wide.
Ideal for standard Schuko sockets used across Europe, the EMSCHSW fits into custom Euro module setups for any need. Rated at 16A, it suffices for a wide range of household appliances.
To use, simply attach the desired front plate onto a suitable mounting box (minimum depth required 35mm), wire up the EMSCHSW as you would a traditional outlet, and then slot the module into the frame until you hear a click.
The EMSCHSW is manufactured to BS 1363-2 to comply with national building standards. For peace of mind, it comes with a 25-year manufacturer’s warranty as per the entire BG Euro Module range.
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Sockets | 1 |
| Socket Type | F-2P SCHUKO Europe Germany Russia 220-240V 16A |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 240 |
| Warranty (years) | 25 |
