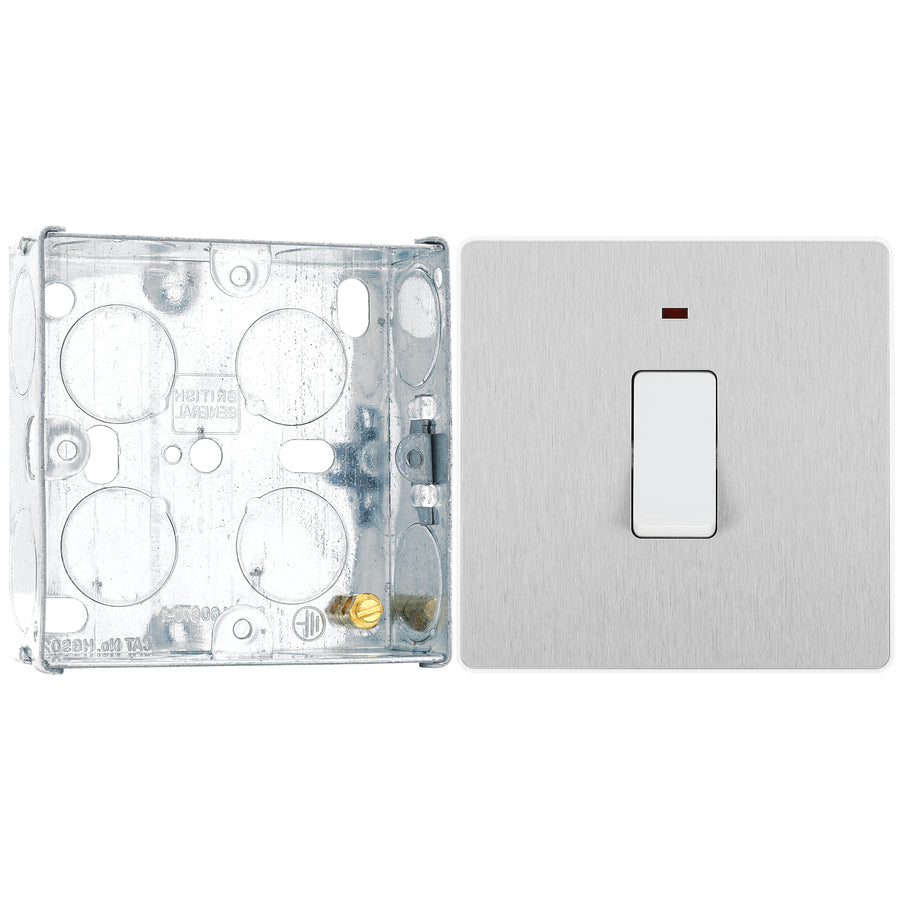

BG Evolve Brushed Steel 20A 2 Pole LED Switch PCDBS31W with 25mm Steel Back Box
This Evolve Brushed Steel 20A double pole switch with indicator from British General has been designed for the connection of refrigerators, water heaters, central heating boilers and many other fixed appliances. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
This steel back box is ideal for the installation of electrical accessories and is designed to be fitted into a wall cavity for a flush to wall fitting. The 25mm depth is ideal for use with 13A sockets and 20A double pole switches. Manufactured from steel for durability, this back box features 4 fixing lugs and M20 knockouts on sides and base for flexible cable entry. Complete with an earth bond terminal for a safe and compliant installation.
| General Colour | Brushed Steel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 1 x 6 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
Downloads
BG Evolve Brushed Steel 20A 2 Pole LED Switch PCDBS31W with 25mm Steel Back Box
Regular price
£11.35
Sale
