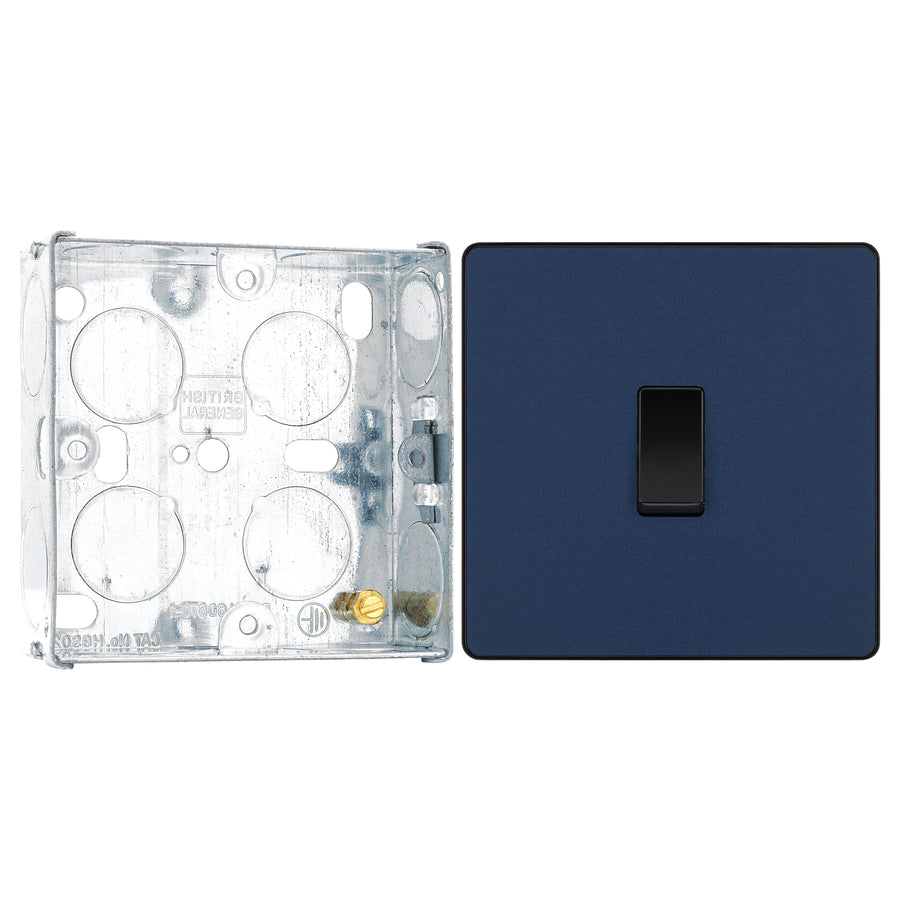

BG Evolve Matt Blue 1 Gang 20A 16AX Intermediate Light Switch PCDDB13B with 25mm Steel Back Box
This Evolve Matt Blue 20A 16AX intermediate light switch from British General should be used as the middle switch when you need to operate one light from 3 different locations, such as either end of a hallway and at the top of the stairs. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
This steel back box is ideal for the installation of electrical accessories and is designed to be fitted into a wall cavity for a flush to wall fitting. The 25mm depth is ideal for use with 13A sockets and 20A double pole switches. Manufactured from steel for durability, this back box features 4 fixing lugs and M20 knockouts on sides and base for flexible cable entry. Complete with an earth bond terminal for a safe and compliant installation.
| General Colour | Dark Blue |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 4 x 1.0, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Intermediate |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
