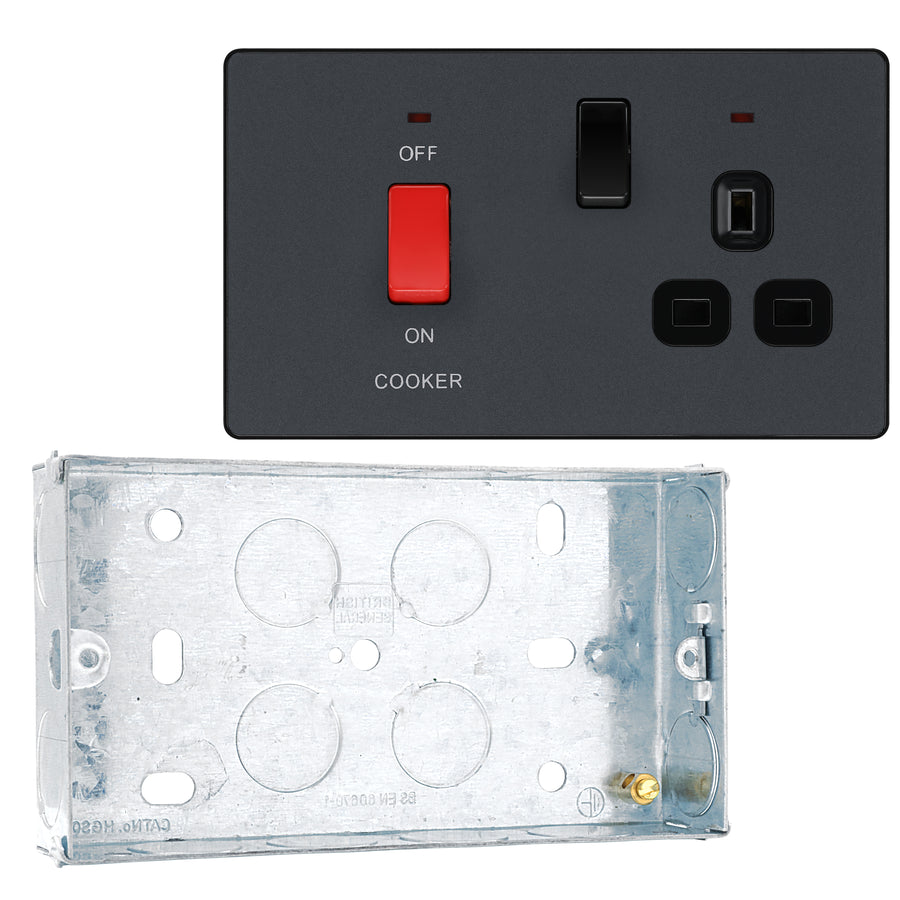

BG Evolve Matt Grey 45A Switch 13A Switched Socket Cooker Control Unit PCDMG70B with 25mm Steel Back Box
This Evolve Matt Grey 45A cooker control unit from British General includes a 13A socket for an additional appliance outlet, and has flush LED indicators above the socket and switch. This CCU has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
This steel back box is ideal for the installation of electrical accessories and is designed to be fitted into a wall cavity for a flush to wall fitting. The 25mm depth is ideal for use with 13A sockets and 20A double pole switches. Manufactured from steel for durability, this back box features 4 fixing lugs and M20 knockouts on sides and base for flexible cable entry. Complete with an earth bond terminal for a safe and compliant installation.
| General Colour | Matt Grey |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 1 x 16, 3 x 6.0, 4 x 4 |
| Front Plate Insert Colour | Black |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-120.6 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
