Description

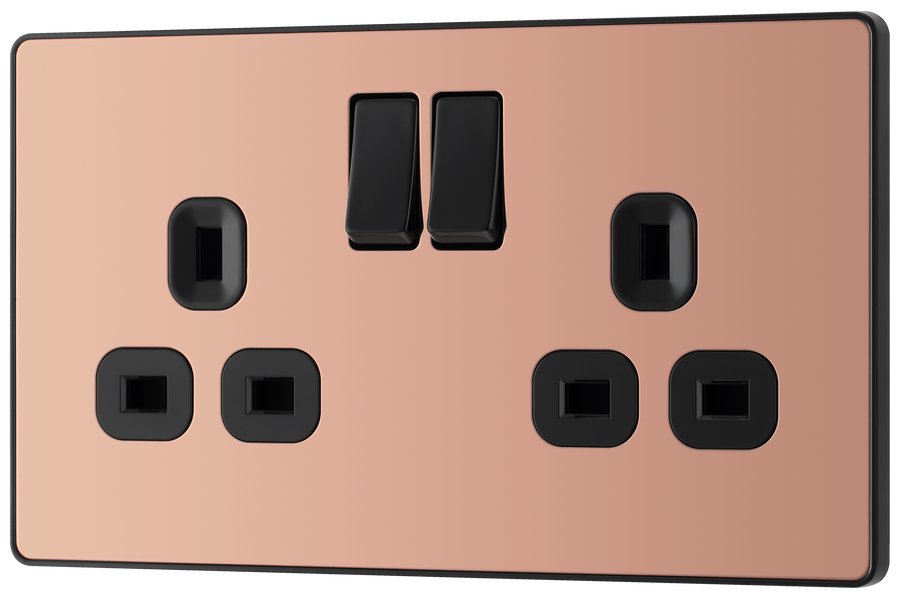

Polished Copper Evolve 2 Gang 13A Switched Socket Outlet - Black Insert
About Product:
- 13A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Angled, colour coded in-line terminals provide easy access for quick installation
- Twin earth fitted as standard for high integrity circuits
- Screwless front plate clips on and off easily, ideal for redecorating - polycarbonate construction with metal veneer
- Minimum mounting box depth 35mm
This Evolve Polished Copper 13A double switched socket from British General has been designed with angled in line colour coded terminals and backed out captive screws for ease of installation, and fits a 25mm back box making it an ideal retro-fit replacement for existing sockets.
The socket has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
Product details:
Dimension
| Unpacked Height (mm) | 86 |
| Unpacked Width (mm) | 146 |
| Unpacked Depth (mm) | 29 |
| Minimum Box Depth (mm) | 35 |
| Front Plate Height (mm) | 5.3 |
Pack
| Packed Width (mm) | 152 |
| Packed Depth (mm) | 43 |
| Packed Height (mm) | 87 |
| Packed Gross Weight (kg) | 0.196 |
| Package Pack Type | Printed Box |
| Package Hanging | No |
| Package EAN | 5050765225809 |
Technical Line Drawing
Specifications & downloads
| General Colour | Polished Copper |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 2 x 6.0 |
| Front Plate Insert Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
