Description
Matt Black Evolve 20A 2 Pole LED Switch - Black Insert
About Product:
- 20A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Suitable for use with refrigerators, water heaters, central heating boilers and many other fixed appliances
- Double Pole switching for the peace of mind of a safer installation
- Colour coded terminals for easy identification
- Captive, backed out terminal screws for fast installation and to prevent screw loss
- Flush LED power indicator
- Screwless front plate clips on and off easily, ideal for redecorating - polycarbonate construction
- Minimum mounting box depth 25mm
This Evolve Matt Black 20A double pole switch with indicator from British General has been designed for the connection of refrigerators, water heaters, central heating boilers and many other fixed appliances.
This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors
Specifications & downloads
| General Colour | Matt Black |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 1 x 6 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
Downloads
Customer reviews

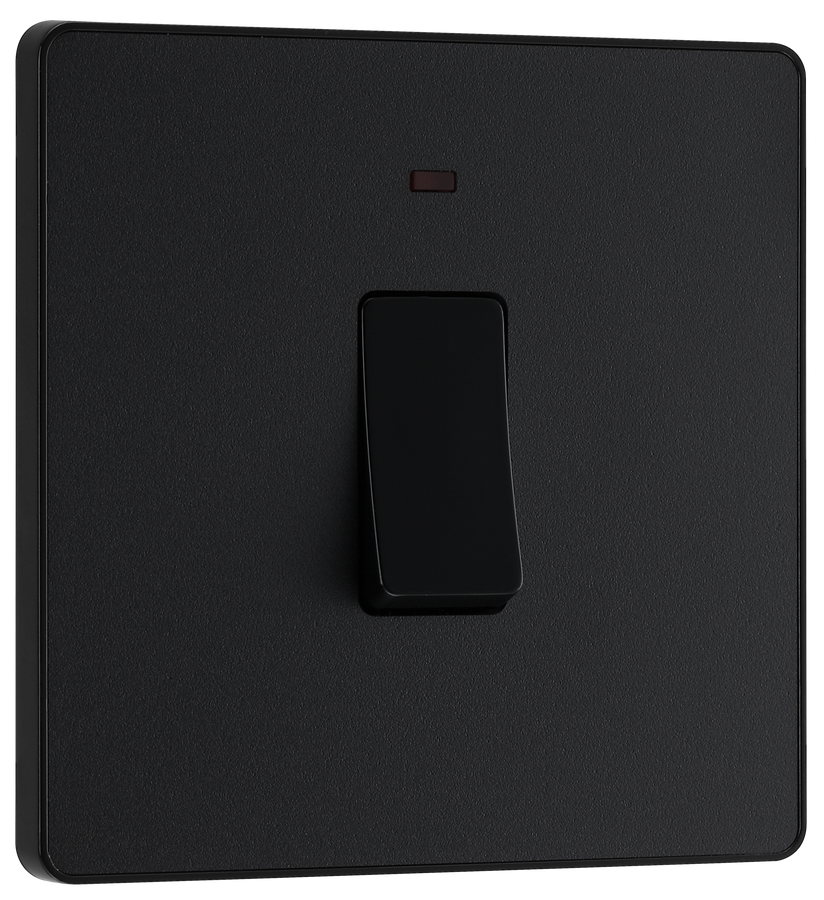

BG Evolve PCDMB31B Matt Black 20A 2 Pole LED Switch-Black Insert
Regular price
£8.67
