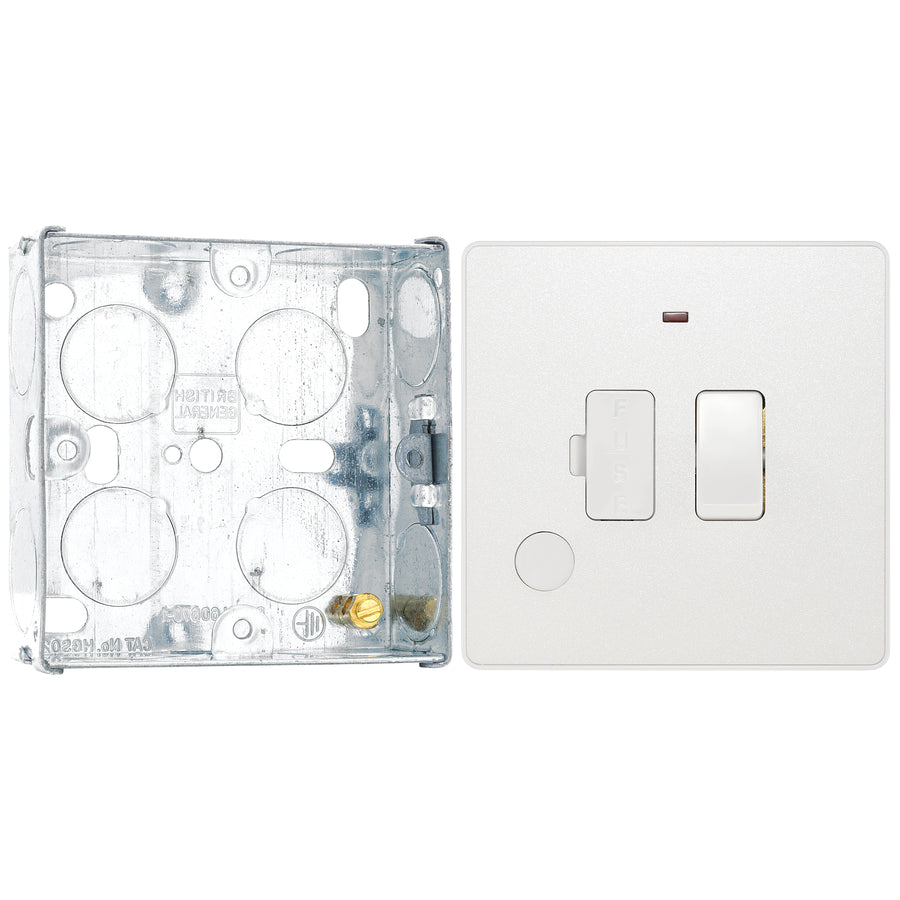

BG Evolve Pearlescent White 13A Switched Spur + Neon PCDCL52W with 25mm Steel Back Box
This Evolve pearlescent white 13A fused and switched connection unit from British General with power indicator provides an outlet from the mains containing the fuse, ideal for spur circuits and hardwired appliances. This FCU has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
This steel back box is ideal for the installation of electrical accessories and is designed to be fitted into a wall cavity for a flush to wall fitting. The 25mm depth is ideal for use with 13A sockets and 20A double pole switches. Manufactured from steel for durability, this back box features 4 fixing lugs and M20 knockouts on sides and base for flexible cable entry. Complete with an earth bond terminal for a safe and compliant installation.
| General Colour | Pearlescent White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 1 x 6 |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
Downloads
BG Evolve Pearlescent White 13A Switched Spur + Neon PCDCL52W with 25mm Steel Back Box
Regular price
£9.65
