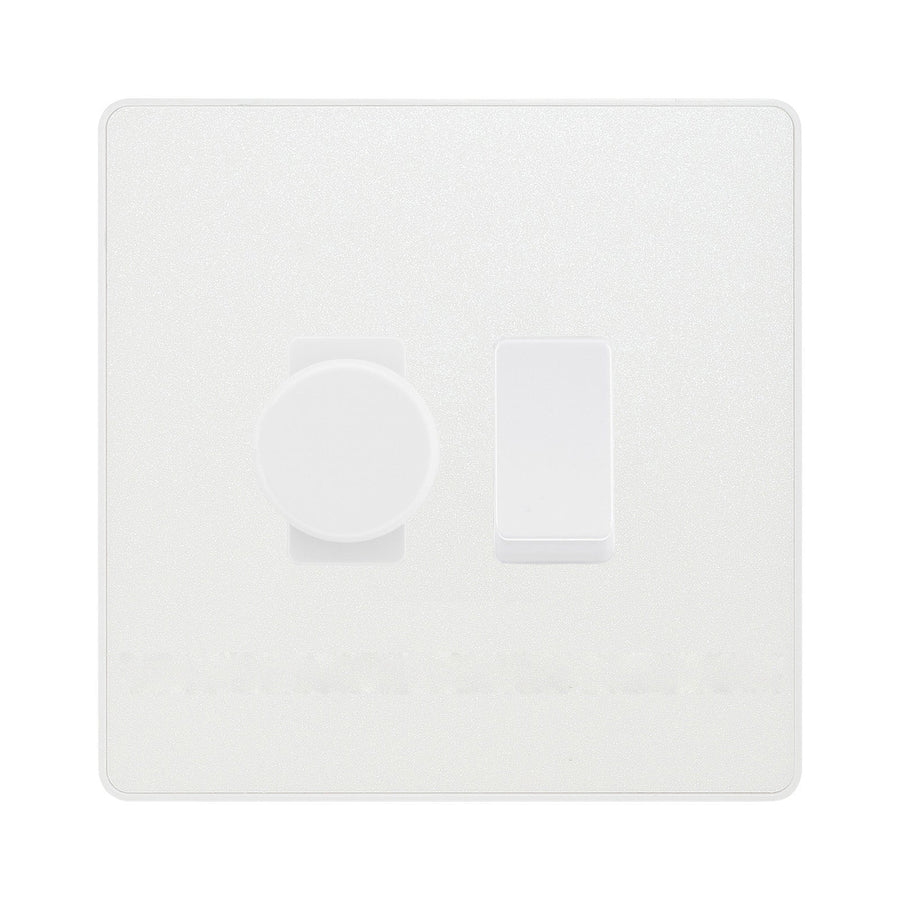

BG Evolve Pearlescent White 2 Gang Switch 1x Dual Mode LED Dimmer 1x Intermediate Grid Switch - Supplied as Separate Grid Parts (Assembly Needed)
What you receive (supplied as separate parts, assembly needed):
- 1x RFR12PCD - Grid Frame 1 + 2 Gang - For Evolve
- 1x RPCDCL2W - Grid Front Plate - PCD Evolve - 2 Gang
- 1x RPCDWDLT - Grid Intelligent Dual Mode Dimmer Module, 2 Way - Evolve White
- 1x RPCDW13 - Grid Evolve 20AX Switch Module Intermediate - White
Which bulbs: the dimmer is rated 5 to 150W per dimmer in trailing edge mode (the default setting) and 5 to 100W in leading edge mode, for dimmable LED, halogen and incandescent lamps. Use dimmable lamps only and keep the total load within this range.
Back box: use a 35mm deep back box for an easy fit, as the dimmer module is deep. The manufacturer minimum is 25mm, but a shallow box leaves little room for the wiring.
Fitting: clip the modules into the frame, wire, fix the frame to the back box, fit the Evolve front plate, then push on the dimmer knob. Installation by a competent person is recommended.
Questions before you order? Call us on 0333 880 3399.
Dimmer module technical specifications (RPCDWDLT)
| Standard(s) | BS EN 60669-2-1 |
| Voltage | 220-240V AC |
| Dimmable LED | Trailing: 5-150W, Leading: 5-100W |
| Tungsten/Incandescent | Trailing: 5-150W, Leading: 5-100W |
| Halogen | Trailing: 5-150W, Leading: 5-100W |
| Type | Switchable Leading/Trailing Edge (set to Trailing Edge as default) |
| Terminal Capacity | 2 x 1mm² & 2 x 1.5mm² |
| Mounting Box Depth (Min) | 25mm |
