Single Light Switch (1 Gang, 2 Way) Black Nickel - 10A
About Product:
- No visible plastic around switches
- Screwless front secure & easy "clip on/off" plate
- Sleek flat profile
- Minimum back box depth: 16mm
- Integral gasket for moisture protection
- Angled in-line colour coded captive terminals
- Manufactured to BS EN 60669-1

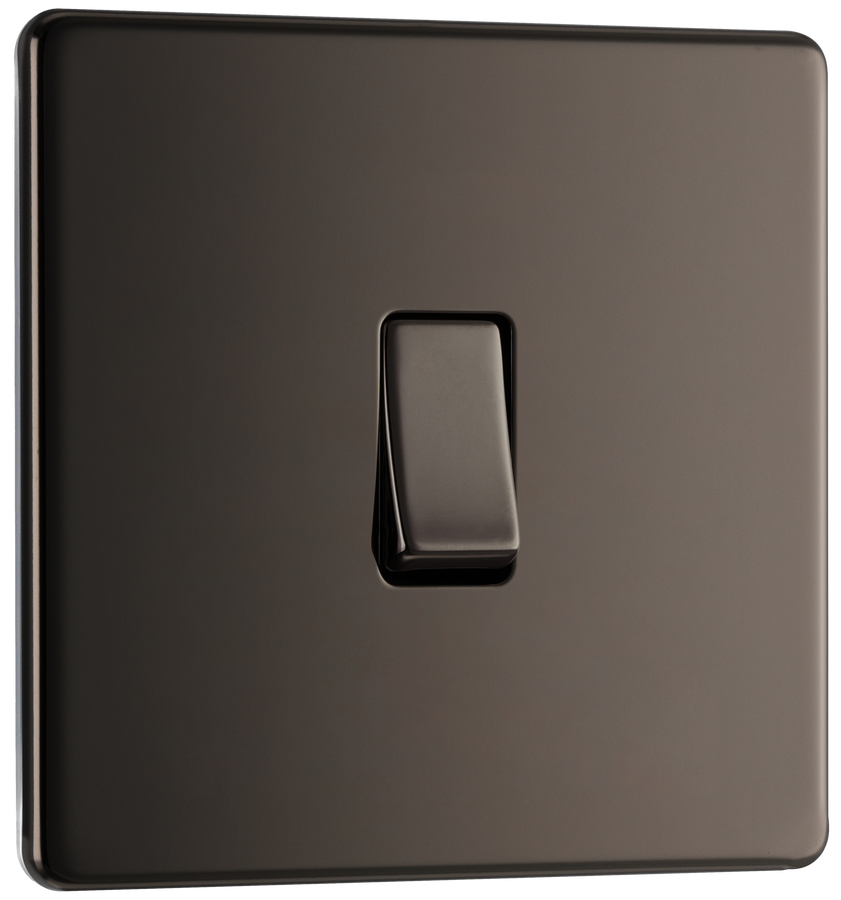

The BG Electrical Nexus Screwless Flat-Plate FBN12 is a black nickel single (1 gang) 2 way switch, manufactured by British General Electrical.
With an extremely thin plate (under 5mm thick from wall to face), flat profile, rounded edges and stylish black nickel finish, the FBN12 light switch has a sleek, modern design to suit a wide range of interior decor.
Its Clip On, Clip Off front plate design is secure and easy to use, and the socket itself can also be easily retrofitted into existing backboxes (minimum 16mm depth required). The switch also has backed out captive screws to further aid simplify installation.
Furthermore, the FBN12 is fitted with a moisture-control gasket which enables it to be installed into recently plastered walls without the risk of tarnishing the finish.
As standard on all BG sockets and switches, the FBN12 comes with a 25-year guarantee for peace of mind.
| General Colour | Black Nickel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 4 x 1.0, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
