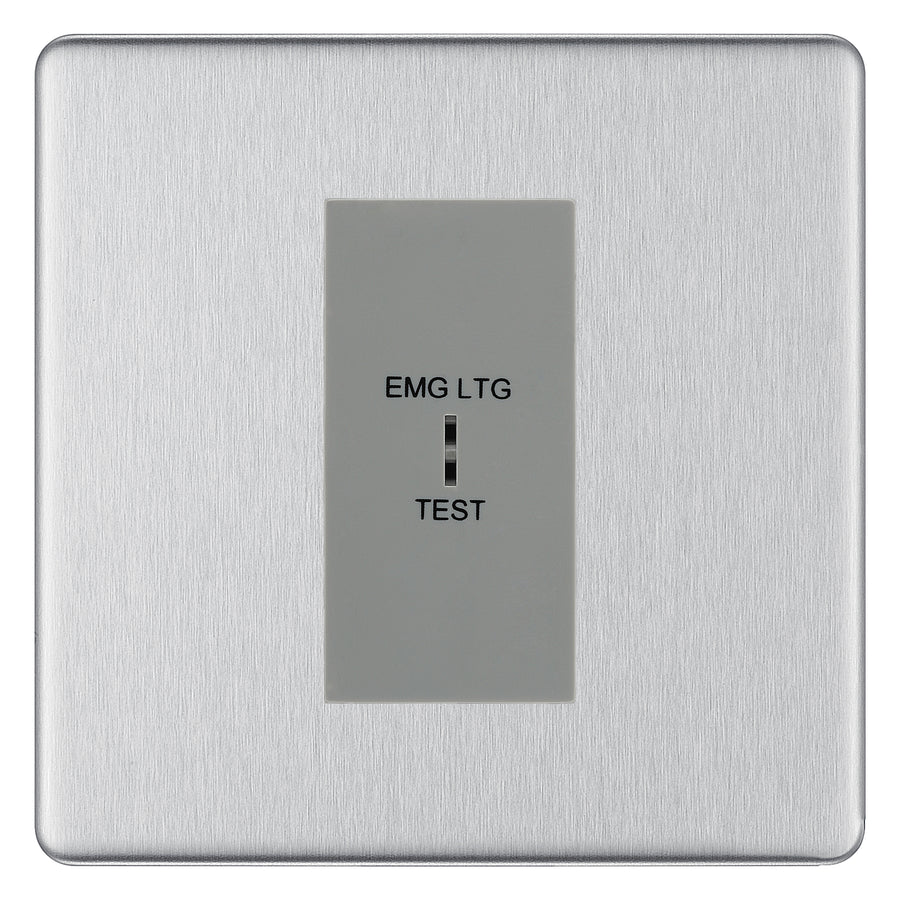

BG Flatplate Screwless Brushed Steel 20AX 2 Way Emergency Lighting Test Key Switch - Key Included - Grey Insert

The Euro Module range from British General combines plates and interchangeable modules so you can configure your own bespoke switches and sockets. This screwless flat plate brushed steel plate holds a 20AX 2 way key switch marked 'EMG LTG TEST', ideal for use in public places to prevent unauthorised people interacting with the switch - the standard way to key-protect the emergency lighting test circuit in offices, schools, retail units and communal areas. The screwless flat plate has a slim clip-on/off front plate with an anti-fingerprint lacquer to add a touch of luxury to your decor.

THE PLATE CONSISTS OF THE FOLLOWING:

• 1x FBSEMS1 - Euro Module Front Plate
• 1x EMSW12ELG - 20AX 2 Way 'EMG LTG TEST' Key Switch (key included)

FEATURES

• 20AX rated, marked 'EMG LTG TEST'
• Module clips in to Euro Module front plate
• Module fits front plate aperture of 25x50mm
• Generally installed in public places to prevent unauthorised people interacting with the switch
• 2 way switching allows for a second switch position in a circuit
• Supplied with key, spare keys available
• Captive backed out terminal screws for fast installation and to prevent screw loss
• Screwless front plate clips on and off easily
• Anti-fingerprint lacquer reduces unsightly fingerprints
• Moisture control gasket, prevents tarnishing from new plaster
• Fitted with earth terminal
• Requires back box, minimum mounting box depth 25mm
• Certified to BS EN 60669-1 (switch) and BS5733 (plate)

For installation by a qualified electrician in accordance with BS 7671.
