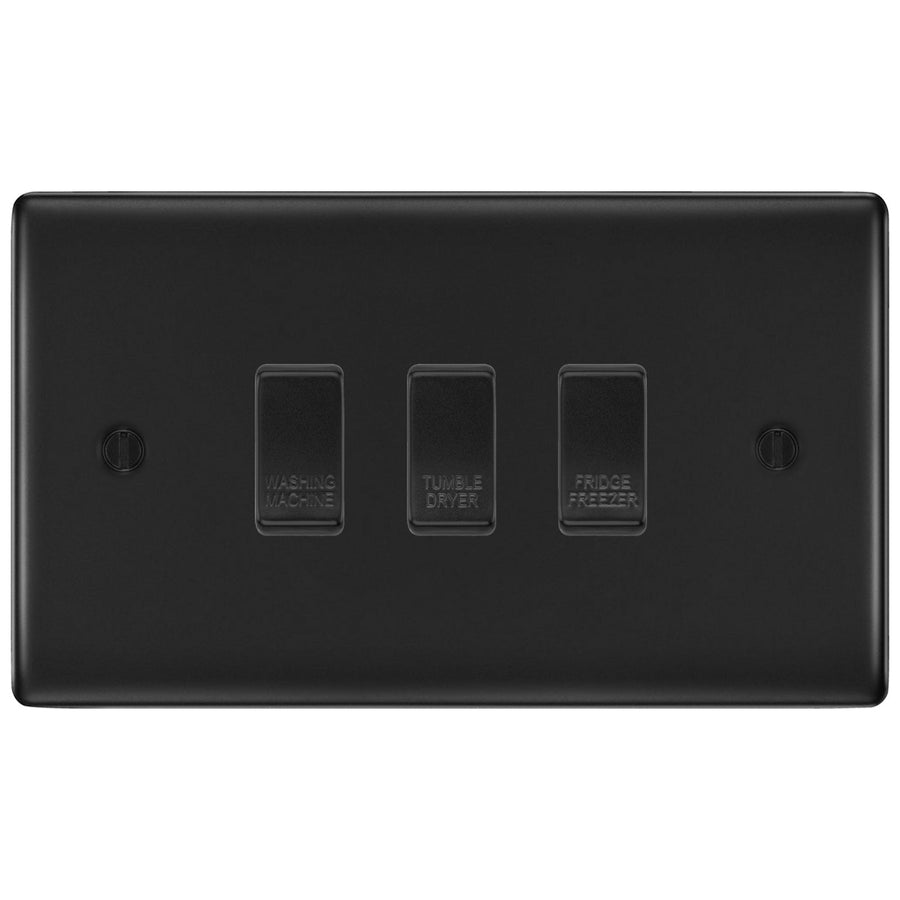

BG Matt Black 3 Gang Custom Appliance Grid Switch Panel Kitchen
The writing is embossed into the switch
Bespoke Grid Switch
The switch Panel consists of the following:
- Mounting frame
- Face plate
- The switches that you choose
Ideal for domestic, commercial and industrial applications, Grid Matches Nexus finishes to provide an extended range.
Grid switches are often used in kitchens, utility rooms and dining rooms so that you have control over the various appliances all in one bespoke grid switch.
Please choose the switches you require from the list below and add a message at checkout to let us know your choices.
Your order will not be dispatched until you have confirmed the switch requirements.
Choice of switches:
20 Amp Double Pole Switch Labelled:
- HOB
- OVEN
- FAN
- WASHING MACHINE
- TUMBLE DRYER
- FRIDGE
- FREEZER
- BOILER
- MICROWAVE
- COOKER HOOD
- WATER HEATER
- WASTE DISPOSAL
- AIR CONDITIONING
- DISH WASHER
- BELL SYMBOL
- FRIDGE FREEZER
- HEATER
- WINE COOLER
- WARMING DRAWER
- 20 Amp Double Pole Switch Unprinted Switch (Used for other appliances)
- 2 Way Single Pole Switch (For Lights Only)
- Intermediate Switch
- Blank Cover (Please note that this is not a working switch)
- Flex Outlet
- Fuse Holder
Please note that if you do not let us know which switches you require your order will not be processed until you do so. Regardless of whether or not express postage has been paid for.
Your grid switch arrives as a kit: a front plate, a metal grid frame and the switch modules you chose. Modules clip into the frame, the frame screws to the back box, and the plate fits over the top.
Safety first: Only fit this yourself if you are competent to do electrical work. Work must meet BS 7671, and some jobs (for example new circuits, or work in bathrooms) are notifiable under Part P in England and Wales. If in doubt, use a registered electrician.
- Switch the circuit off at the consumer unit and confirm it is dead with a voltage tester before touching any wiring.
- Unscrew the old switch, take a photo of the wiring and label which cable goes to which terminal.
- Check the back box is deep enough: at least 25 mm for switches, 35 mm for dimmers and larger plates (see the spec sheets below).
- Clip each module into the grid frame from the front, in the order shown on this listing, with the 'TOP' marking facing up.
- Wire each module: one-way uses COM and L1, two-way uses COM, L1 and L2, and an intermediate takes both pairs of strapper wires. For dimmers and 20A modules, follow BG's leaflet below.
- Connect the earth (green/yellow) cable to the earth terminal on the grid frame or metal plate.
- Screw the grid frame to the back box, then fit the front plate. Screwless plates clip over the frame.
- Switch the power back on and test every switch and dimmer.
BG Matt Black 3 Gang Custom Grid Switch Panel Labelled Kitchen Appliance
Regular price
£30.57
Sale
