BG Matt Black 5 Gang Trailing Edge Dimmer Switch LED Compatible Custom Grid
Please note that this switch will come in a grid format.
You will be sent the following parts all supplied by BG;
- RFR34 - 2x 3 & 4 Gang Mounting Frames
- RNFB6 - 1x 6 Gang Face Plate
- RFBDTR - 5x Dimmer Switch
- RFBBLNK - 1x Blank Switch
- MC503 - 1x Flush Mounting Metal Back Box
Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable.
|
Dimmer Module Technical Specifications |
|
|
Standard(s) |
BS EN 60669-2-1 |
|
Voltage |
200-250V AC |
|
Load Rating (Max/Min per module) Dimmable LED |
|
|
5-100W |
|
|
Tungsten/Incandescent |
5-200W |
|
Halogen |
20-200W |
|
Dimmable Compact Flourescent (CFL) |
5-100W |
|
Type |
Trailing Edge |
|
Terminal Capacity |
4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm² |
|
RoHS Directive |
Yes |
|
WEEE Directive |
Yes |
|
Mounting Box Depth (Min) |
25mm |

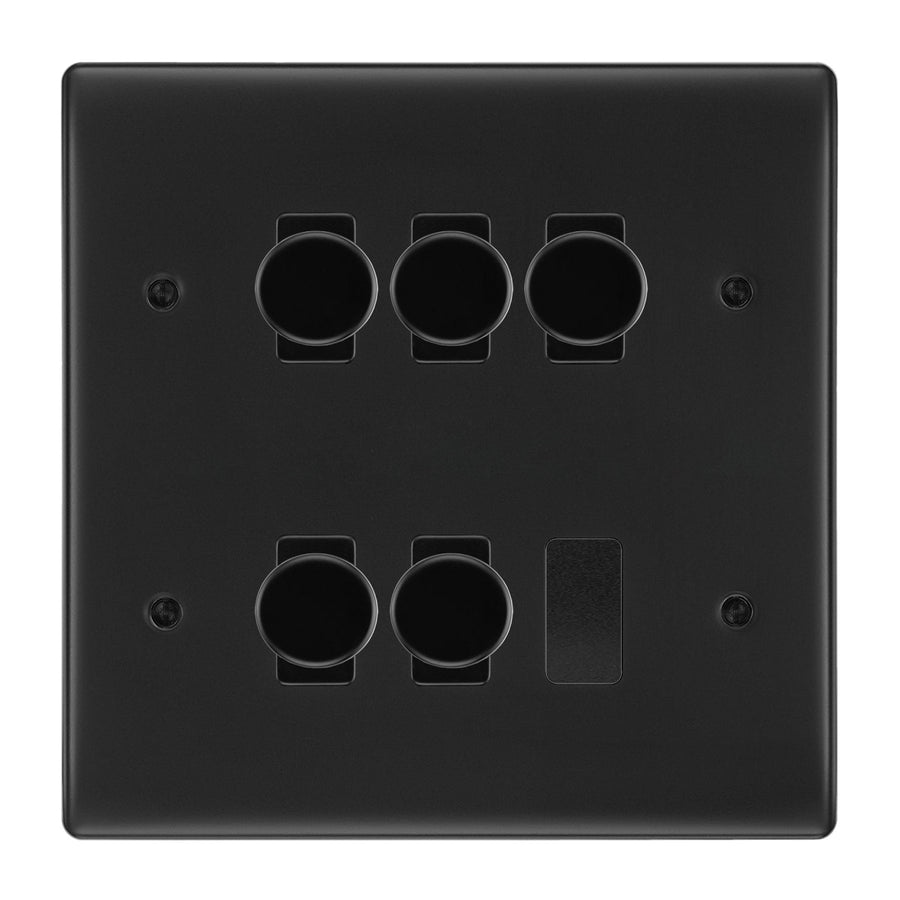

BG Matt Black 5 Gang 2 Way Trailing Edge Dimmer LED Compatible Custom Grid Switch
Regular price
£103.85
Sale
