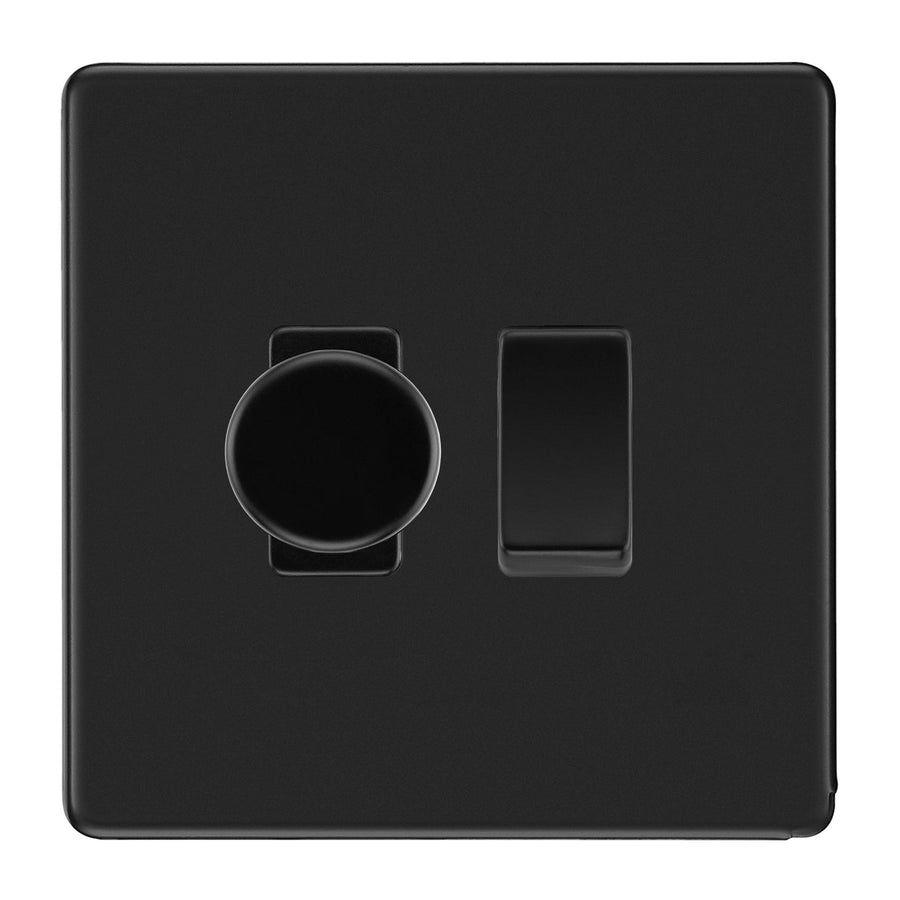

BG Matt Black Screwless 2 Gang Grid Switch 1x Trailing Edge LED Dimmer 1x Intermediate Switch
The dimmer modules are switchable between trailing edge (the default setting) and leading edge, and are suitable for dimmable LED, halogen and incandescent lamps. Please check that the bulbs you are using are compatible with the dimmer before purchasing.
Please note that this switch will come in a grid format.
You will be sent the following parts all supplied by BG;
RFR12FP - 1x 1 & 2 Gang Grid Yoke Frame
RFFB2 - 1x 2 Gang Cover Plate
RFB13 - 1x Intermediate Switch
RFBDLT - 1x Dimmer Switch
Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable.
| Dimmer Module Technical Specifications | |
| Standard(s) | BS EN 60669-2-1 |
| Voltage | 220-240V AC |
| Load Rating (Max/Min per module) Dimmable LED | |
Trailing: 5-150W, Leading: 5-100W | |
| Tungsten/Incandescent | Trailing: 5-150W, Leading: 5-100W |
| Halogen | Trailing: 5-150W, Leading: 5-100W |
| Type | Switchable Leading/Trailing Edge (set to Trailing Edge as default) |
| Terminal Capacity | 2 x 1mm² & 2 x 1.5mm² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 25mm |
BG Matt Black Screwless 2 Gang Grid Switch 1x Dual Mode LED Dimmer 1x Intermediate Switch
