Description

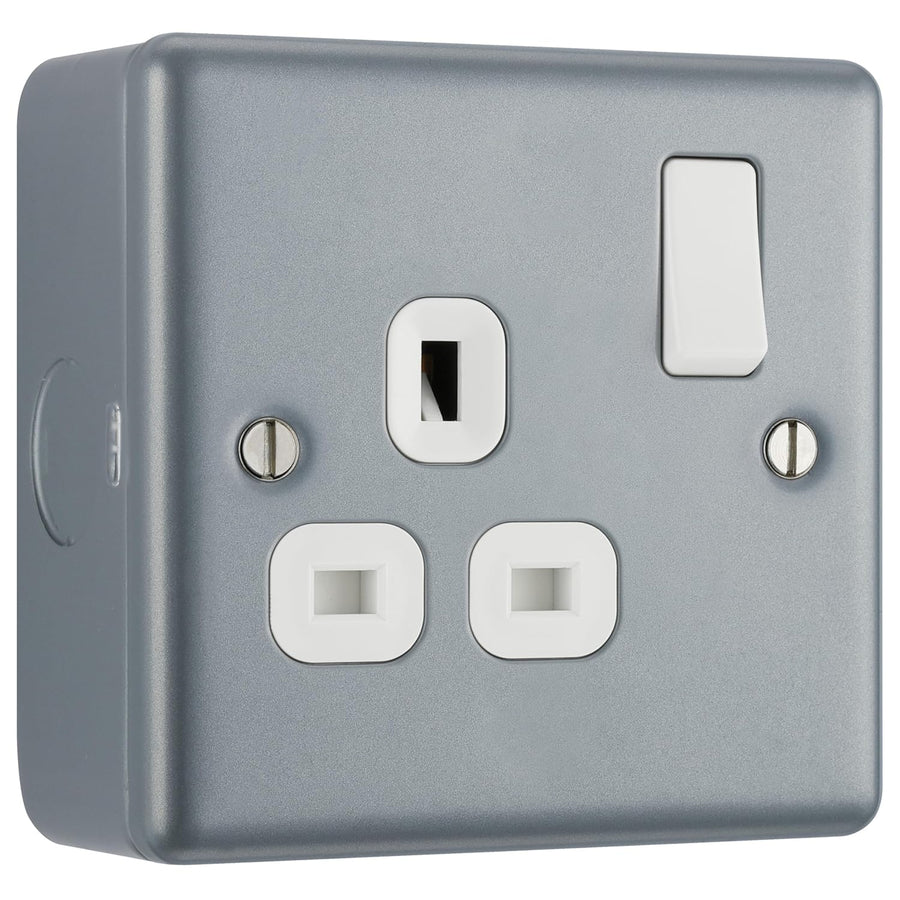

BG MC521 Metal Clad | 1 Gang 13A 2 Pole Switched Socket
- 13A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Multiple knock out metal box for versatility
- Durable scratch resistant epoxy powder coated finish
- No visible plastic around switch
- Ideal for commercial and industrial environments
- In-line terminals for straight forward installation
- Captive screws prevent screw loss
- Twin earth fitted as standard for high integrity circuits
- White insert
This Metal Clad 13A single switched socket from British General is made from a rugged scratch resistant heavy gauge steel and has multiple knock outs for versatility. This socket has twin earth for high integrity circuits and colour coded terminals with backed out captive screws for ease of installation. An ideal solution for commercial and industrial environments.
Specifications & downloads
| General Colour | Grey |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 2 x 6.0 |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | No |
| Number of Sockets | 1 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
Downloads
