Description

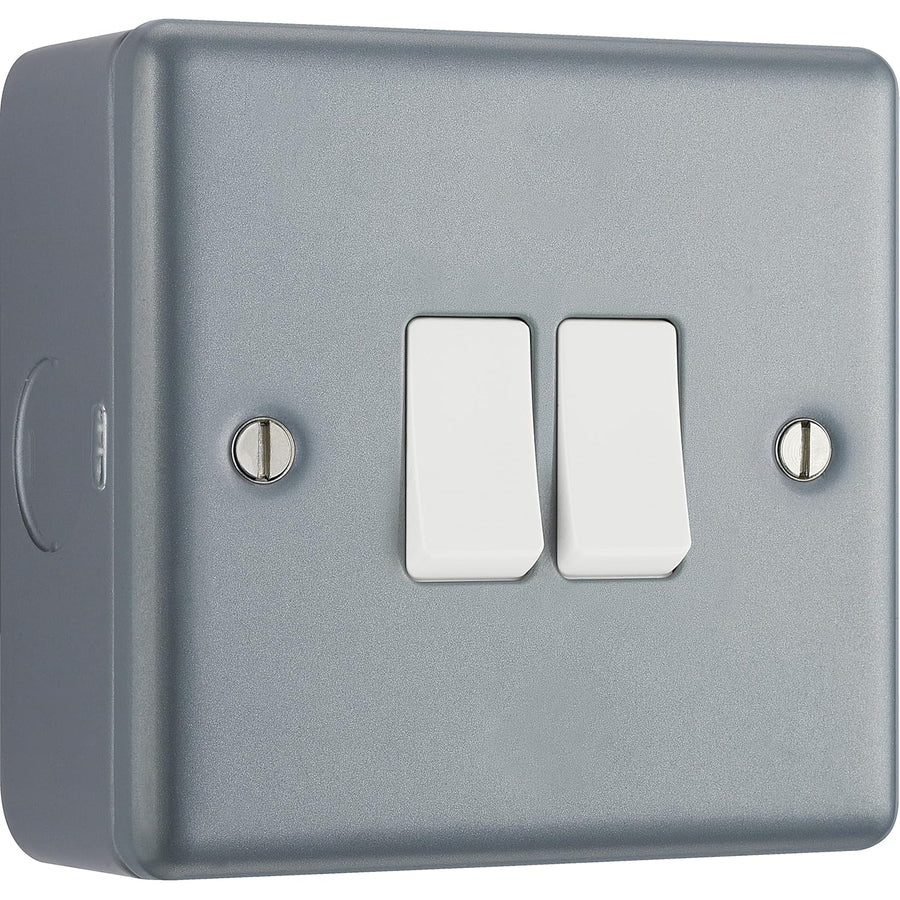

BG MC542 Metal Clad 20A 16AX 2 Way Double Light Switch
- 20A 16AX Rated
- Easy to install, supplied with fixing screws and installation instructions
- 2 way switching allows for a second switch position in a circuit
- Captive, backed out terminal screws for fast installation and to prevent screw loss
- A rugged, scratch resistant range, suitable for everyday use in commercial and industrial environments
- Mounting box with 1x 20mm knockouts in each side and rear face
- Flat profile with rounded edges
- Certified to BS60669-1
This Metal Clad 20A 16AX light switch from British General can operate 2 different lights whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location, such as 2 different entrance points in a building or office space. This Metal Clad switch is made from a rugged scratch resistant steel, and is suitable for everyday use in commercial and industrial environments.
Specifications & downloads
| General Colour | Grey |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (# x mm²) | 2 x 2.5, 4 x 1.0, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | No |
| Number of Switches | 2 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-44.5 X H-44.5 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
