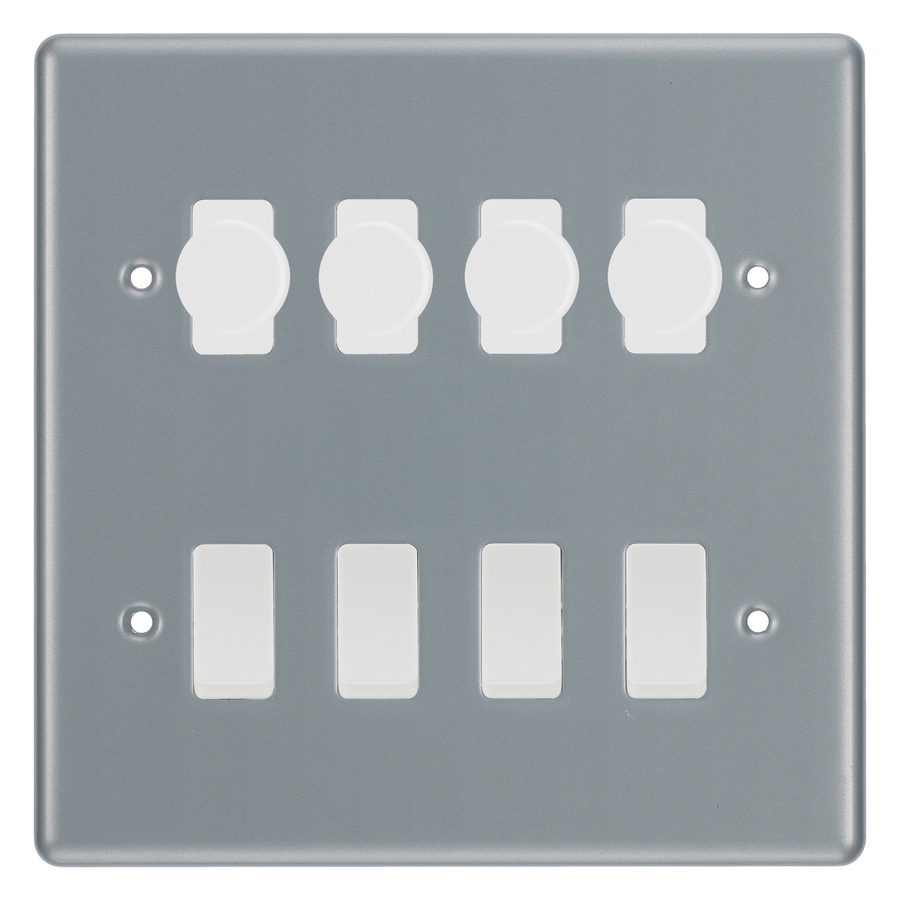

BG Metal Clad 8 Gang Switch 4x LED Dimmer 4x Intermediate Custom Grid
The Metal Clad range from BG is manufactured in heavy gauge steel and finished with epoxy powder coating, giving a rugged scratch resistant plate for environments where a domestic finish does not last.
The dimmer module is switchable between trailing and leading edge, so it suits dimmable LED, halogen and incandescent lamps. Soft start, smooth dimming and silent operation, with overload protection that turns the lights down or off if too many lamps or transformers are connected. Please check that your bulbs are marked dimmable before purchasing.
The intermediate switch is used as the middle switch when you need to operate one light from 3 different locations, such as at the top and bottom of the stairs and at the end of a hallway or landing. It allows for more than 2 switches in a circuit.
Please note that this switch will come in a grid format.
You will be sent the following parts all supplied by BG:
- RFR34 - 2x 3 & 4 Gang Grid Yoke Frame
- MC503 - 1x 6 & 8 Gang Back Box
- RMC8 - 1x 8 Gang Cover Plate
- RDLT - 4x Dimmer Switch
- R13 - 4x Intermediate Switch
Suitable for flush wall mounting, or surface mount with metal clad boxes.
Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable.
| Dimmer Module Technical Specifications | |
| Standard(s) | BS EN 60669-2-1 |
| Voltage | 200-250V AC |
| Load Rating (Max/Min per module) | |
| Dimmable LED | 5-100W |
| Tungsten/Incandescent | 5-200W |
| Halogen | 20-200W |
| Dimmable Compact Flourescent (CFL) | 5-100W |
| Type | Switchable – Trailing or Leading Edge |
| Terminal Capacity | 4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 25mm |
