Description

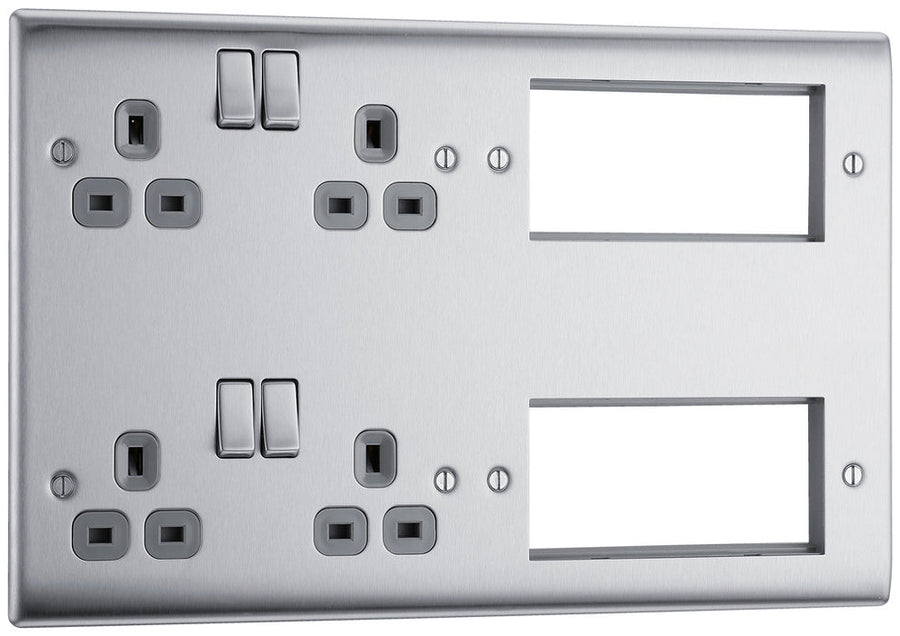

BG Nexus Metal 2x 2G Socket 13A + 2x 4 Module Aperture - Grey Insert - Brushed Steel
Premium BRUSHED STEEL metal accessories, in a range of superior quality finishes that will complement any interior décor
- Lightly lacquered surface to reduce fingerprint marks
- No visible around switches
- Angled in-line colour coded captive terminals
- Modern Slim profile
- Twin Earth
This item is 2 x 2g Socket + 2 x 4 Module Aperture
- Twin earth fitted as standard
- Manufactured to BS 1363 Part 2
- Terminal capacity 3 x 2.5mm², 3 x 4.0mm² & 2 x 6.0mm²
- Modules of mains and extra low voltage rating must not be fitted to the same front plate aperture Ref. BS 7671:2008
- Mounting box depth 47mm
Specifications & downloads
| General Colour | Brushed Steel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 2 x 6.0, 3 x 2.5, 3 x 4 |
| Front Plate Insert Colour | Grey |
| Anti-fingerprint Lacquer | Yes |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 4 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 4 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 4 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-120.6 X H-100 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
