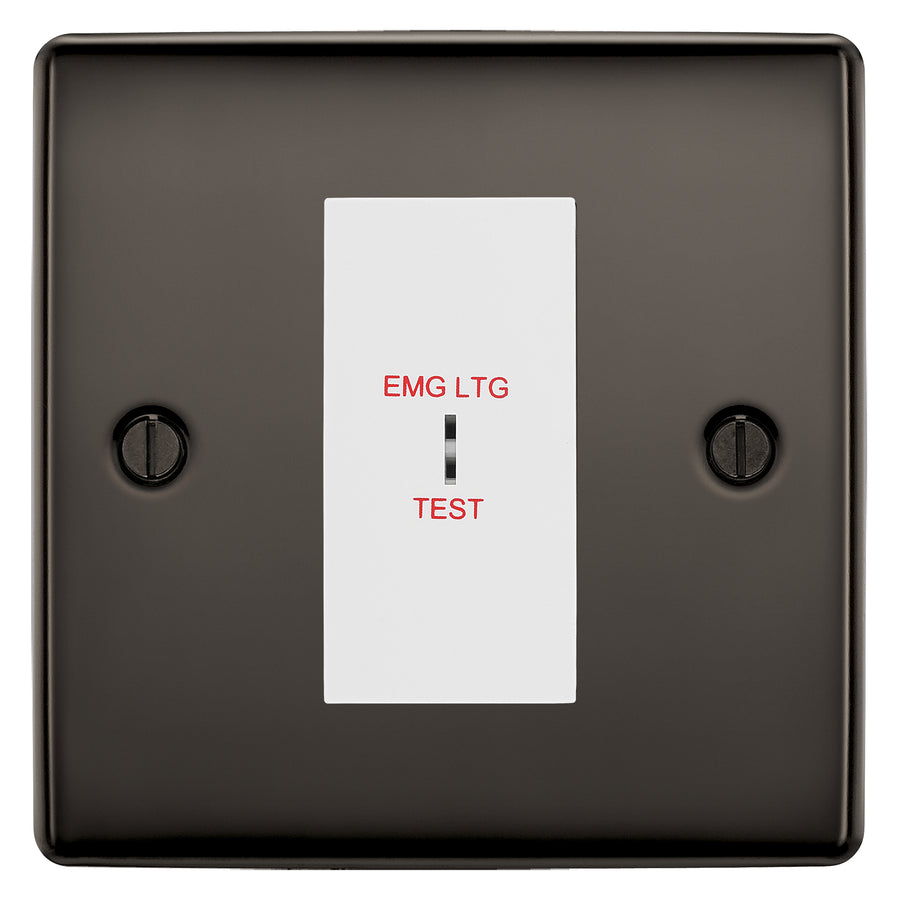

BG Nexus Metal Black Nickel 20AX 2 Way Emergency Lighting Test Key Switch - White Insert

The Euro Module range from British General combines plates and interchangeable modules so you can configure your own bespoke switches and sockets. This black nickel plate holds a 20AX 2 way key switch marked 'EMG LTG TEST', ideal for use in public places to prevent unauthorised people interacting with the switch - the standard way to key-protect the emergency lighting test circuit in offices, schools, retail units and communal areas. The black nickel front plate has a sleek and slim profile with an anti-fingerprint lacquer and softly rounded edges to add a touch of luxury to your decor.

THE PLATE CONSISTS OF THE FOLLOWING:

• 1x NBNEMS1 - Euro Module Front Plate
• 1x EMSW12ELW - 20AX 2 Way 'EMG LTG TEST' Key Switch (key included)

FEATURES

• 20AX rated, marked 'EMG LTG TEST'
• Module clips in to Euro Module front plate
• Module fits front plate aperture of 25x50mm
• Generally installed in public places to prevent unauthorised people interacting with the switch
• 2 way switching allows for a second switch position in a circuit
• Supplied with key, spare keys available
• Captive backed out terminal screws for fast installation and to prevent screw loss
• Sleek and slim premium metal with softly rounded edges
• Anti-fingerprint lacquer reduces unsightly finger marks
• Moisture control gasket, prevents tarnishing from new plaster
• Fitted with earth terminal
• Requires back box, minimum mounting box depth 25mm
• Certified to BS EN 60669-1 (switch) and BS5733 (plate)

For installation by a qualified electrician in accordance with BS 7671.
