Description

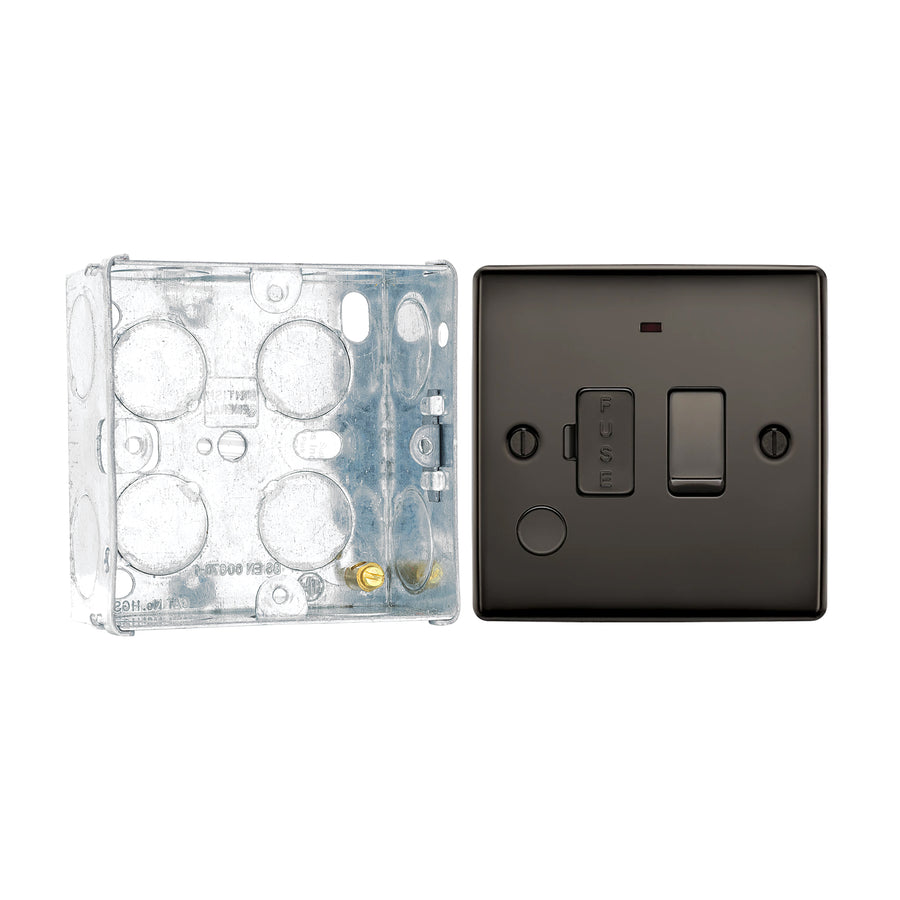

BG Nexus Black Nickel 13A Flex Output Neon Switched Fused Connection Unit NBN53 with 35mm Steel Back Box
This 13A fused and switched connection unit with power indicator from British General provides an outlet from the mains containing the fuse ideal for spur circuits and hardwired appliances. The backplate has an optional flex outlet with removable blanking piece at the lower edge. This black nickel finish unit has a has a sleek and slim profile with flex outlet, colour coded removable blanking piece at the lower edge, and a reversible cord-grip.
The 35mm steel back box is designed for flush wall installation and is suitable for mounting electrical accessories. Manufactured from durable steel, it includes M20 knockouts on the sides and base, four fixing lugs, and an earth bonding terminal for safe installation.
Specifications & downloads
| General Colour | Black Nickel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | Black Nickel - RAL9004 (Signal Black) |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
