Description

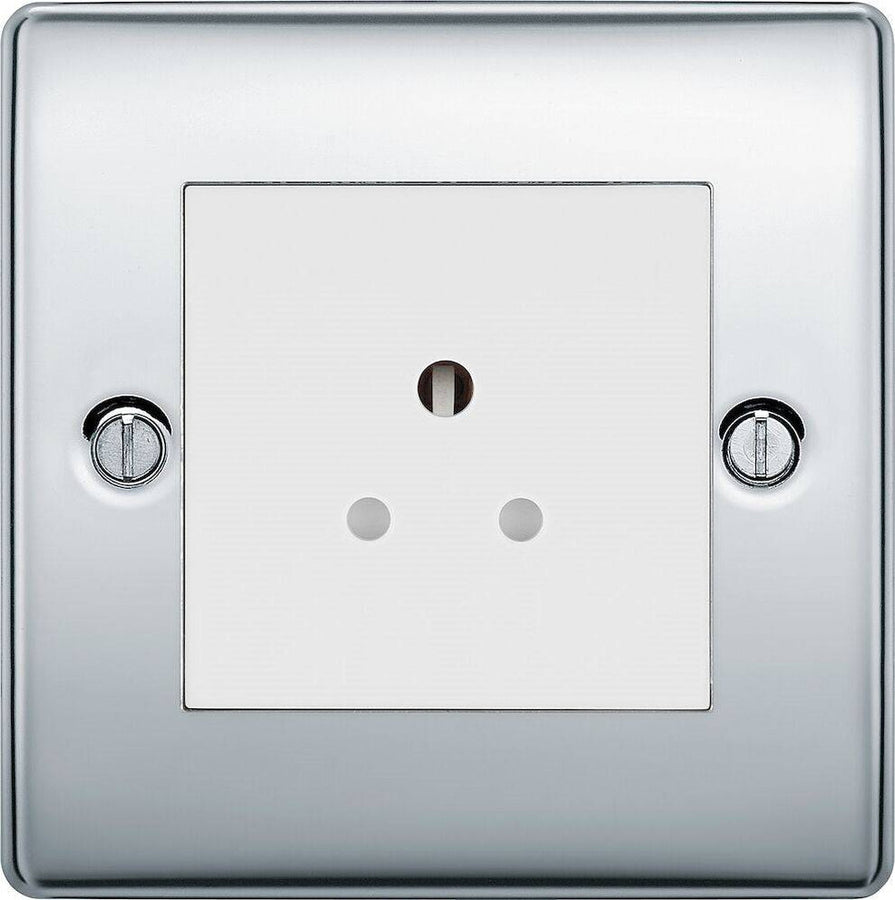

BG Nexus Metal Polished Chrome 5A Unswitched Socket NPC29W
The NPC29W is a 5A unswitched socket from the BG Nexus Metal range, finished in polished chrome and built using BG Nexus Euro Modular system. This range of switches and sockets has been designed with a modern, slim profile and has a lightly lacquered surface to reduce fingerprint marks. BG Nexus Metal switches and sockets come with colour coded screws and has a full grid system to match.
- 5 Amp Unswitched Socket
- Integral Gasket for Moisture Protection
- Colour Coded Screws
- Constructed from a 2G Euro Plate and 5A Module
- Minimum Mounting Box Depth 25mm
- Dimensions - 87.5 x 87.5 x 4.3mm
- Convex Plate
- Polished Chrome with a White Insert
- Polished Finish
- Material: Premium Grade Steel
Specifications & downloads
| General Colour | Polished Chrome |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 1 x 2.5 |
| Front Plate Insert Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | D-3P 5A Round Pin India 220-240V 5A |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
