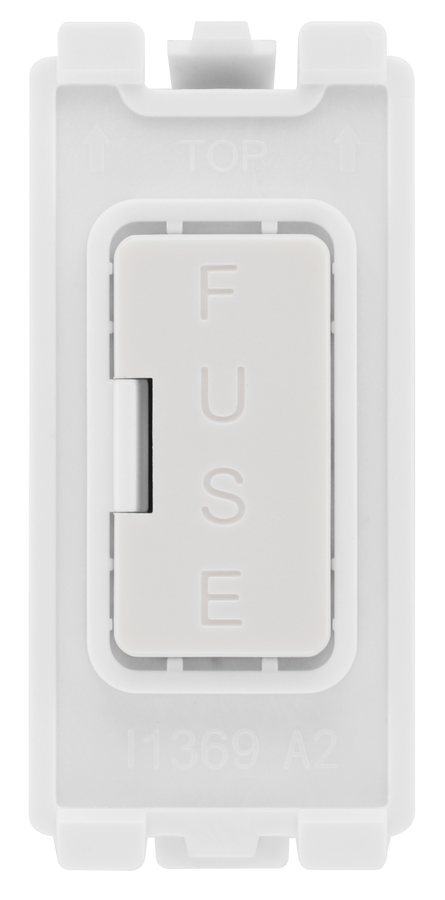

Nexus Grid White 13A Fuse Holder Module
About Product:
- Rating: 13A, 250V
- White finish
- Minimum mounting box depth: 25mm
The BG Electrical Nexus Grid RFUSE is a white fuse holder, supplied with 13A fuse.
Suitable for a wide range of circuit protection and supplied with a 13A fuse ready for most handheld and small household appliances, the RFUSE is an excellent pairing option for a modular switch or flex outlet.
It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame. Made of white urea, this socket has inherent anti-microbial properties that make it ideal for anywhere with a heavy traffic.
To aid installation, the RFUSE comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Not Applicable |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | Not Applicable |
| Switch Type (Ways & Poles) | N/A |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
Downloads
BG RFUSE Nexus Grid White 13A Fuse Holder Module
