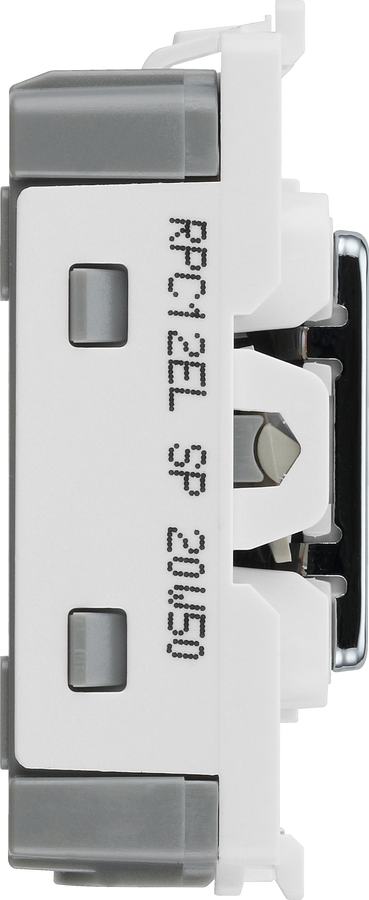

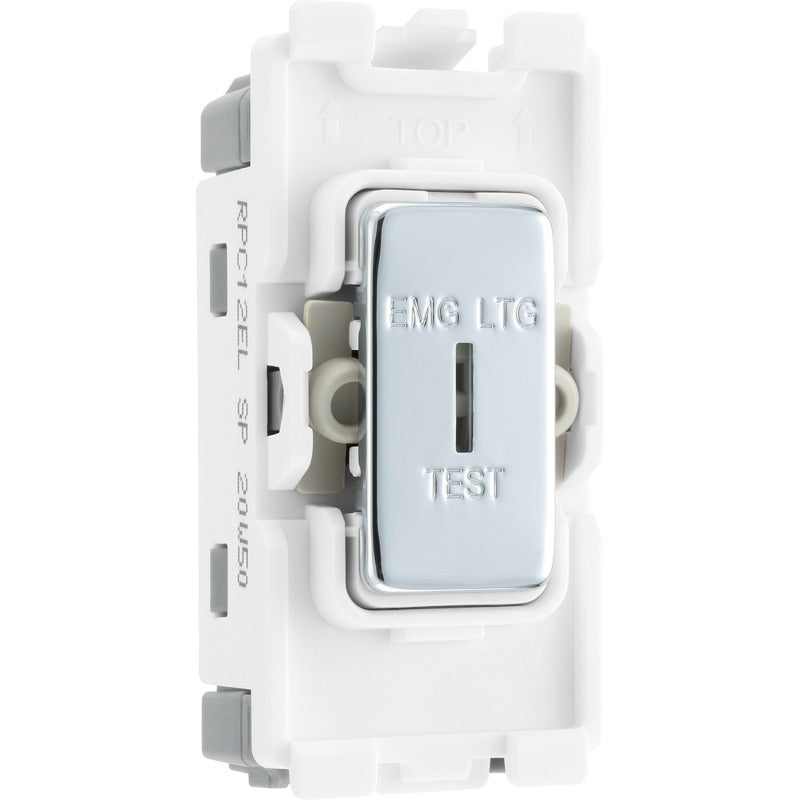

BG RPC12EL Nexus Grid Polished Chrome 20AX 2 Way 1 Pole EMG LTG TEST Key Switch Module
Nexus Grid Polished Chrome 20AX 2 Way 1 Pole EMG LTG TEST Key Switch Module
About Product:
- Rating: 20 Amp, 20AX Inductive
- 2 Way, single pole
- Polished Chrome finish
- Minimum mounting box depth: 25mm
- Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
The BG Electrical Nexus Grid RPC12EL is a polished chrome single-pole 2-way secret key switch module, printed with EMG LTG TEST rated at 20AX.
A versatile switch module, the RPC12EL is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing. Using a secret-key system and marked with EMG LTG TEST, the RPC12EL is particularly suited to use with emergency lighting - insert the key and move up and down for safe, secure use.
It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.br>
To aid installation, the RPC12EL comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module
BG RPC12EL Nexus Grid Polished Chrome 20AX 2 Way 1 Pole EMG LTG TEST Key Switch Module
Regular price
£6.05
Sale
£7.26
