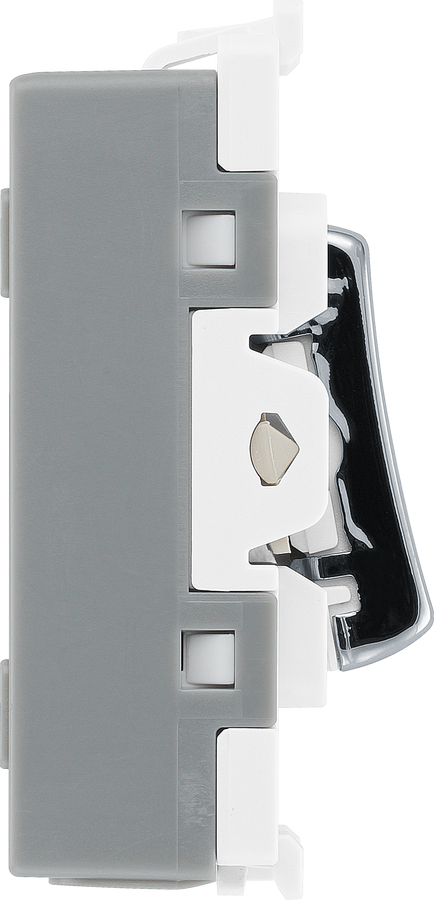

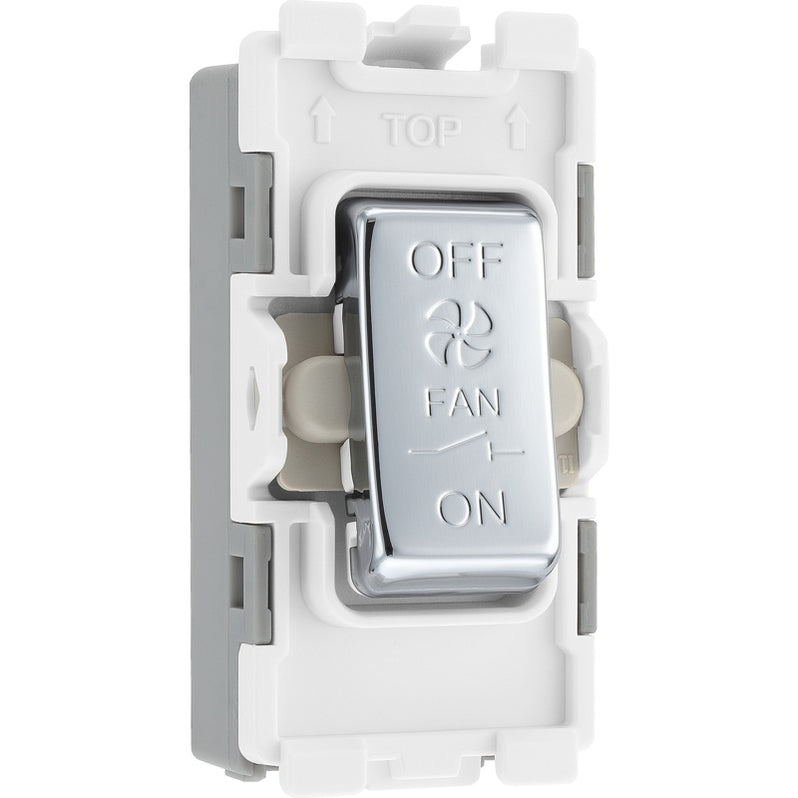

Nexus Grid Polished Chrome 10A 3 Pole Fan Isolator Switch Module
About Product:
- Rating: 10 Amp, 250V
- 3 Pole fan switch module
- Polished Chrome finish
- Minimum mounting box depth: 25mm
- Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
The BG Electrical Nexus Grid RPC15 is a polished chrome 3-pole fan isolator switch module, rated at 10A.
The RPC15 switch module is suitable for most ventilation and ceiling fan control needs. Rated at 10A and with 3 pole switching, it isolates fittings for maintenance work to be carried out safely – BG recommend using alongside a fused module for further protection.
It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.
To aid installation, the RPC15 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module
| General Colour | Polished Chrome |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
