Description
Evolve Grid Black 13A Fuse Holder Module
About Product:
- Supplied with 13A fuse - BS 1362
- Clips securely to frame - see below
- Black module - white module available
- Clearly marked terminals with backed out captive screws for easy installation
- Requires 25mm minimum depth mounting box
- Terminal capacity: 3 x 2.5mm², 2 x 4.0mm², 1 x 6.0mm²
The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.

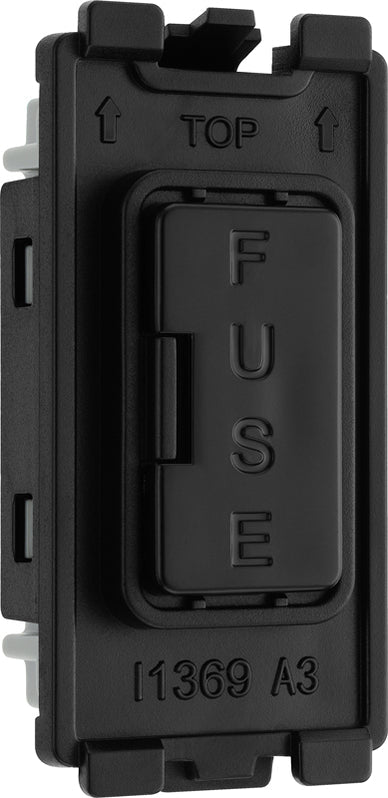

This fuse holder module is embossed with the word 'fuse' and is supplied with a pre-fitted 13A fuse.
The black finish matches the black frames on the BG Evolve frontplates.
Specifications & downloads
| General Colour | Black |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Not Applicable |
| Number of Earth Terminals | 0 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | Not Applicable |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
