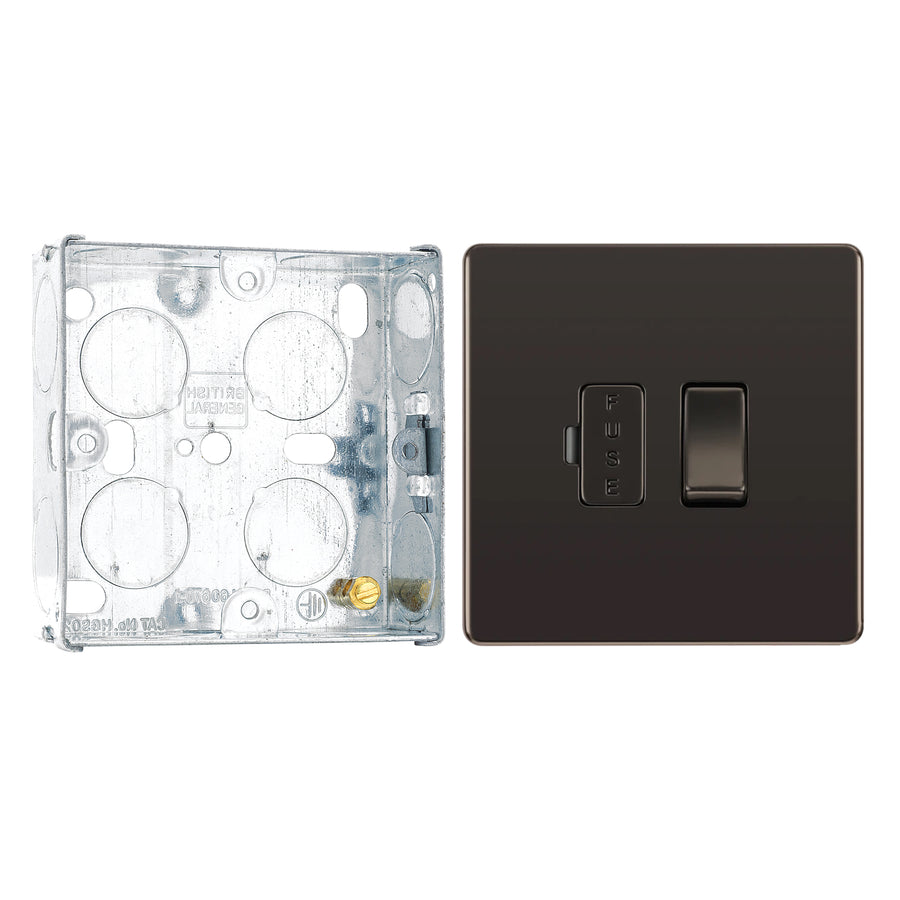

BG Screwless Black Nickel 13A Switched Spur FBN50 with 25mm Steel Back Box
This switched and fused 13A connection unit from British General provides an outlet from the mains containing the fuse and is ideal for spur circuits and hardwired appliances. This black nickel FCU has a screwless flat plate that clips on and off and sits flush against the wall, making it ideal for modern interiors.
The 25mm steel back box is designed for flush wall installation and is suitable for mounting electrical accessories. Manufactured from durable steel, it includes M20 knockouts on the sides and base, four fixing lugs, and an earth bonding terminal for safe installation.
Specifications & downloads
| General Colour | Black Nickel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 1 x 6, 2 x 4 , 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | No |
| Flex Out Position | None |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
