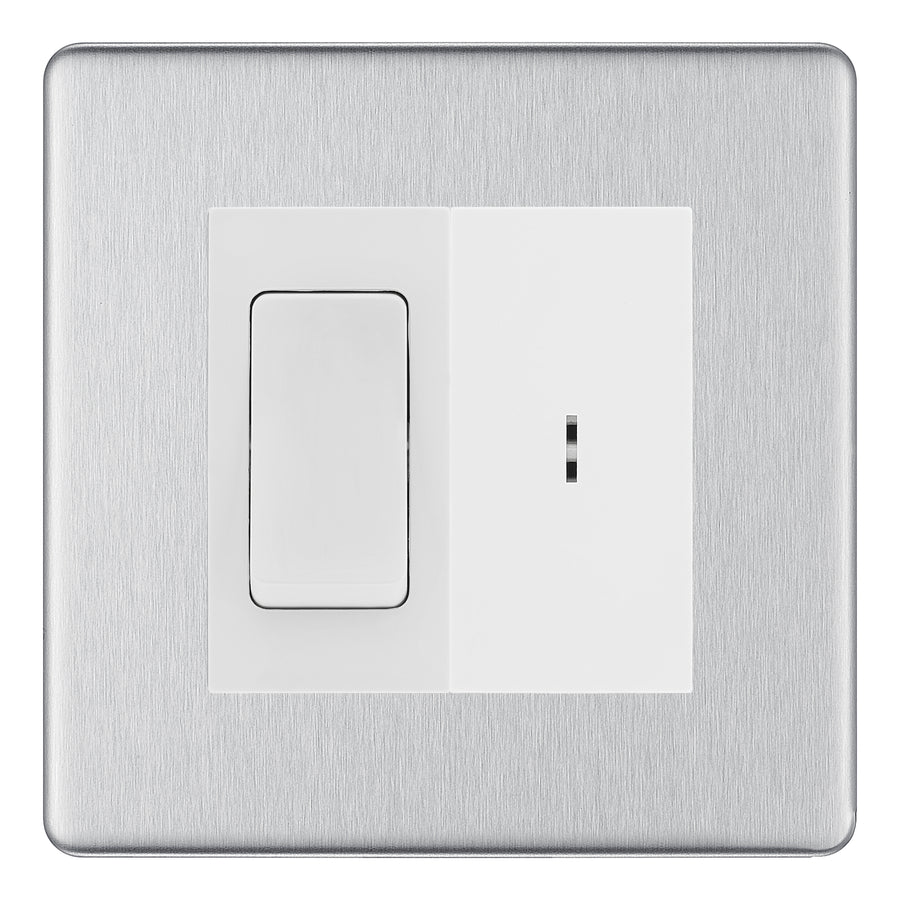

BG Screwless Brushed Steel 20A Secret Key Switch with 20A Double Pole Switch - White Insert

The Euro Module range from British General lets you build your own configuration from a wide variety of interchangeable modules, plates and finishes. This two-module plate combines a 20A double pole secret key switch with a 20A double pole switch on a single premium brushed steel front plate — ideal for domestic, commercial and industrial applications where controlled access and safe isolation are needed side by side.

The secret key switch lets you control access to the operation of important electrical equipment and is generally installed in public places to prevent unauthorised people interacting with the switch; it is supplied with a key (spare keys available). The 20A switch is double pole for additional safety and peace of mind. Both modules simply wire through and clip into the front plate.

WHAT'S INCLUDED

• 1x EMSW30KYW - 20A Double Pole Secret Key Switch, (key included)
• 1x EMSW30W - 20A Double Pole Switch
• 1x FBSEMS2 - Euro Module Front Plate

KEY FEATURES

• Secret key switch: key-controlled isolation, supplied with key (spare keys available)
• 20A double pole switch for the peace of mind of a safer installation
• Captive backed-out terminal screws for fast installation and to prevent screw loss
• Modules clip into the front plate; each fits a 25 x 50mm aperture
• Minimum mounting box depth 25mm
• Certified to BS EN 60669-1

COMPLIANCE
For installation by a qualified electrician in accordance with BS 7671.
