Description

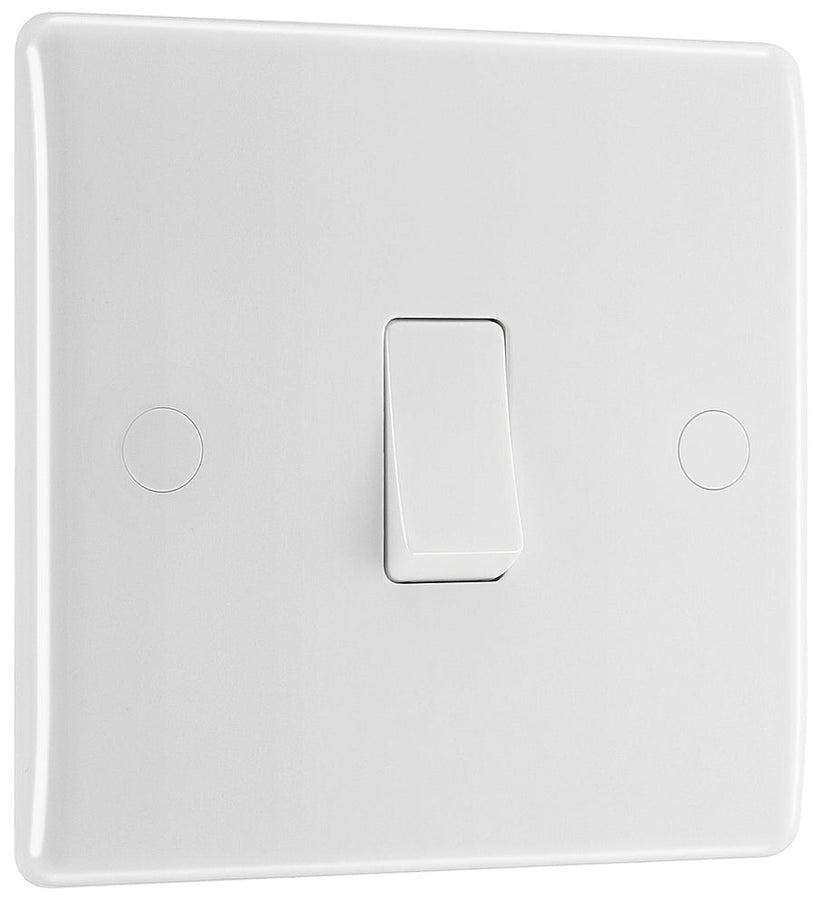

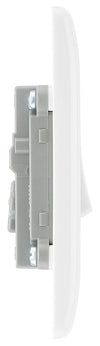

BG 813 Moulded Round Edge | White | 1 Gang 10AX Intermediate Plate Switch
- 20A 16AX Rated
- Easy to install, supplied with fixing screws and installation instructions
- Intermediate switch allows for more than 2 switches in a circuit
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Minimum mounting box depth: 16mm
- Certified to BS60669-1
This Nexus 800 series white moulded 20A 16AX intermediate light switch from British General should be used as the middle switch when you need to operate one light from three different locations such as at the top and bottom of the stairs and at the end of a hallway or landing. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with soft rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 16 |
| Terminal Capacity (# x mm²) | 1 x 4, 2 x 2.5, 4 x 1.0 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Intermediate |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
