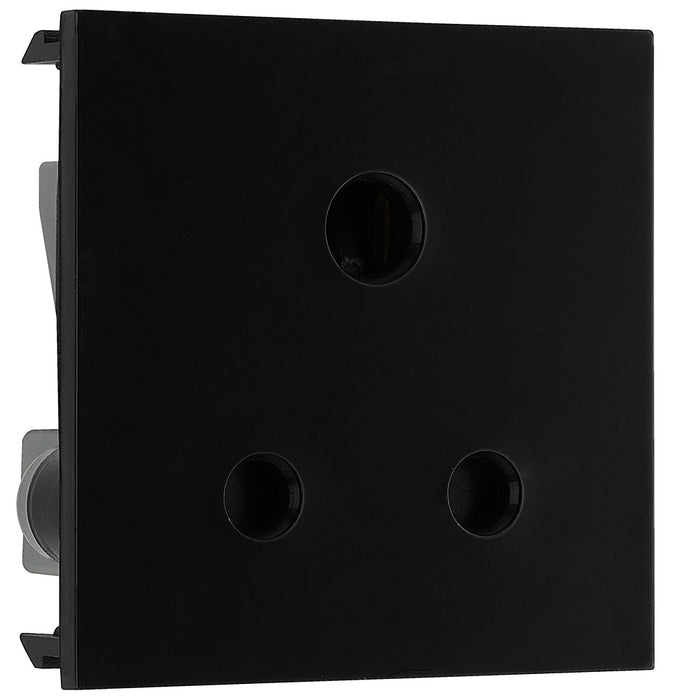

The BG Electrical Euro Module EM5ASB is a black round pin unswitched socket, 2 modules wide and rated at 5A.
About Product:
- 5 Amp Euro Power Module
- Size: 50 x 50mm
- Colour: Black
The EM5ASB is rated at 5A and thus is particularly suited to specialist lighting circuits around the home. Compatible with any BG Euro Module single front plate, it only takes up 2 modules of Euro Module space and so take up no more room than a regular socket.
To use, simply attach the desired front plate onto a suitable mounting box (minimum depth required 25mm), wire up the EM5ASB as you would a traditional socket, and then slot the module into the frame from the front until you hear a click. This holds securely but can be removed if needs be.
The EM5ASB is manufactured to BS 1363-2 to comply with national building standards. For peace of mind, it comes with a 25-year manufacturer’s warranty as per the entire BG Euro Module range.
| General Colour | Black |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 35 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | No |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 1 |
| Socket Type | D-3P 5A Round Pin India 220-240V 5A |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
