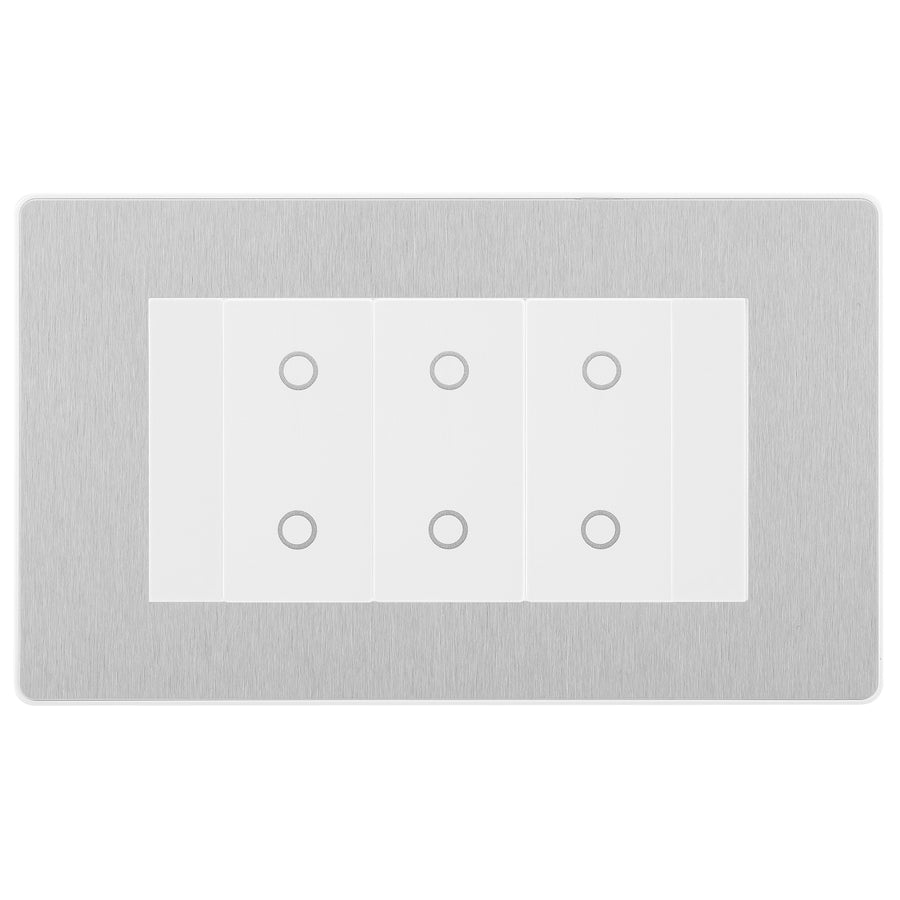

BG Evolve Brushed Steel Screwless Triple Secondary Touch Dimmer Switch PCDBSTDS3W

Please note that this switch will come in a Euro Module format.

You will be sent the following parts all supplied by BG:

• 1x Faceplate
• 3x Slave Touch Dimmer Module
• 1x Blank Module

BG secondary trailing edge touch dimmer that controls light levels and sets mood. Must be used in the same circuit as a master touch dimmer.

Dimmer modules can only handle 10 bulbs per dimmer module (100 LED Watts Max).

Touch Dimmer Switch – Intelligent Trailing Edge

Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps

Soft start brings the lights to a set level in around 1 second and extends the life of lamps

Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected

• Smooth dimming control
• Silent operation - no noise when dimming
• Support for lower wattage lamps eliminates flicker
• Touch dimmer control
• Captive backed out terminal screws prevent screw loss
• Manufactured to BS EN 60669-2-1
• 3 x 1mm² 2 x 1.5mm² & 1 x 2.5mm²
• Minimum mounting box depth – 25mm

Load Rating (Max/Min per module)

• Dimmable LED 5-100W
• Tungsten/Incandescent 5-200W
• Halogen 20-200W
• Dimmable Compact Fluorescent (CFL) 5-100W
