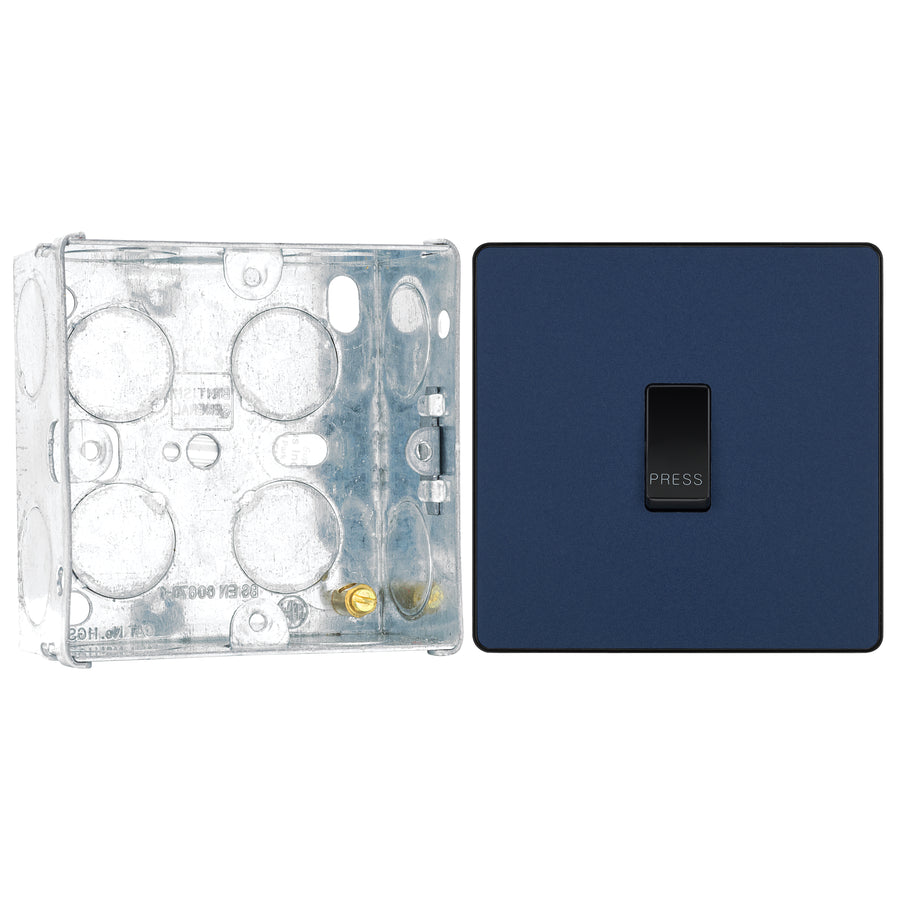

BG Evolve Matt Blue 10AX 1 Way Press Switch PCDDB14B with 35mm Steel Back Box
This Evolve Matt Blue bell push switch from British General is ideal for use where access is restricted such as office buildings or hospitals, where visitors need to let those inside know they have arrived. This switch has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
The 35mm steel back box is designed for flush wall installation and is suitable for mounting electrical accessories. Manufactured from durable steel, it includes M20 knockouts on the sides and base, four fixing lugs, and an earth bonding terminal for safe installation.
| General Colour | Dark Blue |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 4 x 1.0, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | One Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
