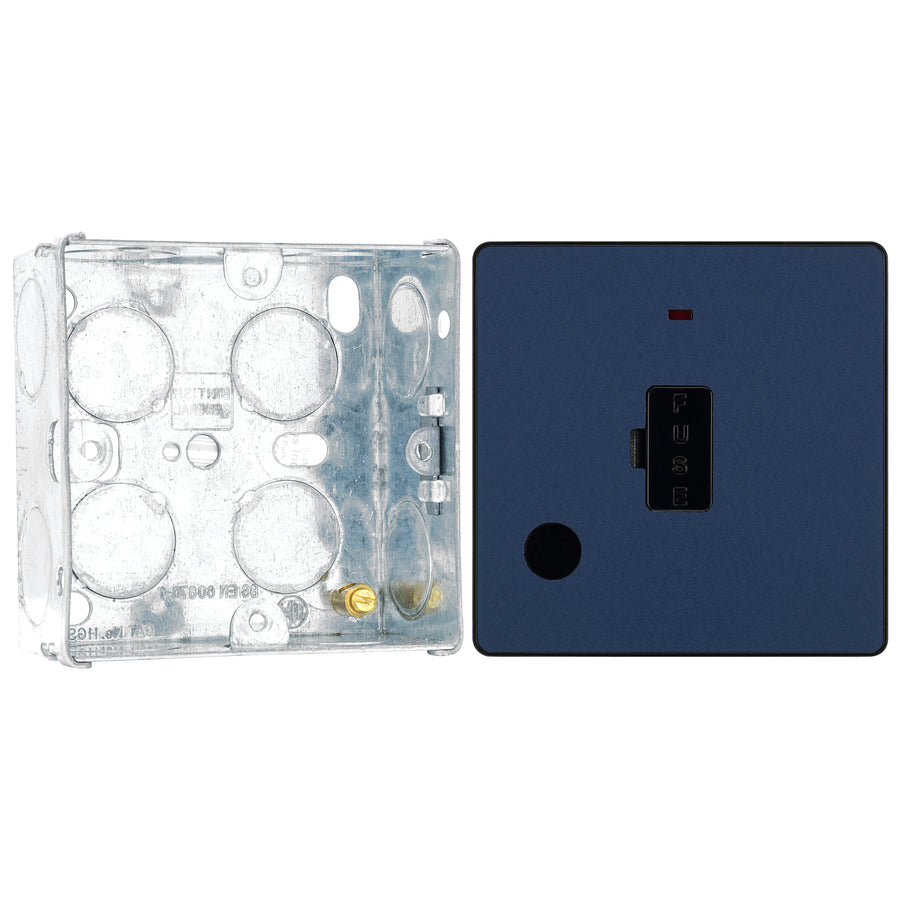

BG Evolve Matt Blue 13A Unswitched Spur with Neon and Flex Outlet PCDDB54B with 35mm Steel Back Box
This Evolve Matt Blue 13A fused and unswitched connection unit from British General provides an outlet from the mains containing the fuse, ideal for spur circuits and hardwired appliances. This FCU has a low profile screwless flat plate that clips on and off, making it ideal for modern interiors.
The 35mm steel back box is designed for flush wall installation and is suitable for mounting electrical accessories. Manufactured from durable steel, it includes M20 knockouts on the sides and base, four fixing lugs, and an earth bonding terminal for safe installation.
| General Colour | Dark Blue |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 1 x 6, 2 x 4 , 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
Downloads
BG Evolve Matt Blue 13A Unswitched Spur with Neon and Flex Outlet PCDDB54B with 35mm Steel Back Box
Regular price
£9.09
