BG grid switch set combining an intelligent dual mode (trailing or leading edge) LED dimmer, an intermediate/2-way switch and a standard 2-way switch — all in a sleek plate. Perfect for flexible lighting control in modern homes, apartments, offices or commercial spaces, this set offers dimming, multi-way control and elegant design in one package.
Please note that this switch will come in a grid format.
You will be sent the following parts all supplied by BG:
- RFR34PCD - 1x 3 & 4 Gang Grid Yoke Frame
- RPCDCL3W - 1x 3 Gang Cover Plate
- RPCDW12 - 1x 2 Way Single-Pole Switch
- RPCDW13 - 1x Intermediate Switch
- RPCDWDLT - 1x Dimmer Switch
The dimmer modules are switchable between trailing edge (the default setting) and leading edge, and are suitable for dimmable LED, halogen and incandescent lamps. Please check that the bulbs you are using are compatible with the dimmer before purchasing.
Please find below the list of bulbs that the dimmer is capable of dimming and the list of wattages that are suitable
| Dimmer Module Technical Specifications | |
| Standard(s) | BS EN 60669-2-1 |
| Voltage | 220-240V AC |
| Load Rating (Max/Min per module) Dimmable LED |
|
Trailing: 5-150W, Leading: 5-100W | |
| Tungsten/Incandescent | Trailing: 5-150W, Leading: 5-100W |
| Halogen | Trailing: 5-150W, Leading: 5-100W |
| Type | Switchable Leading/Trailing Edge (set to Trailing Edge as default) |
| Terminal Capacity | 2 x 1mm² & 2 x 1.5mm² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 25mm |

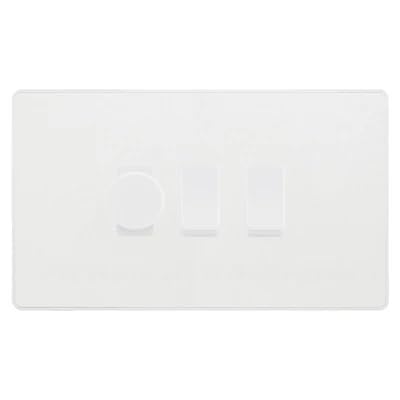

BG Evolve Pearlescent White 3 Gang Light Switch Grid – 1x Trailing-Edge LED Dimmer, 1x Intermediate, 1x 2-Way Switch
Regular price
£29.47
Sale
