Description

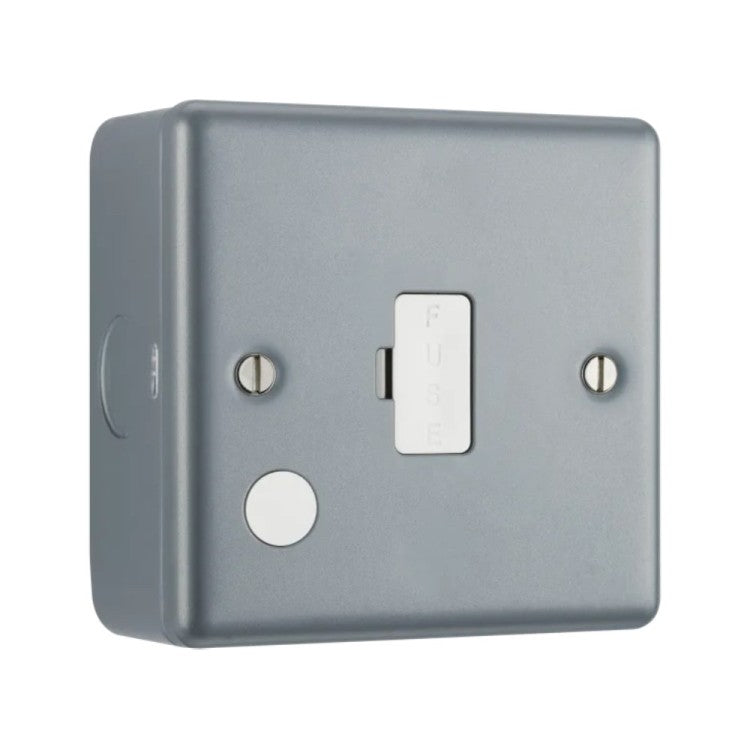

BG MC552F Metal Clad | 13A Flex Outlet Unswitched Fused Connection Unit
- 13A Rated
- Easy to install supplied with fixing screws and installation instructions
- Ideal for spur circuits and hard wired power appliances
- Twin earth for high integrity circuits
- Captive screws prevent screw loss
- Multiple knock out metal box
- Durable scratch resistant powder coated finish
- Ideal for commercial and industrial environments
- Flex outlet with removable blanking piece at the lower edge and a reversible cord grip
- Embossed with 'Fuse' on the fuse cover
This 13A fused and unswitched connection unit from British General provides an outlet from the mains containing the fuse ideal for spur circuits and hardwired appliances. This Metal Clad FCU is made from a rugged scratch resistant metal, and has multiple knock outs for versatility.
Specifications & downloads
| General Colour | Grey |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | N/A |
| Terminal Capacity (# x mm²) | 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | No |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 X H-44.5 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
