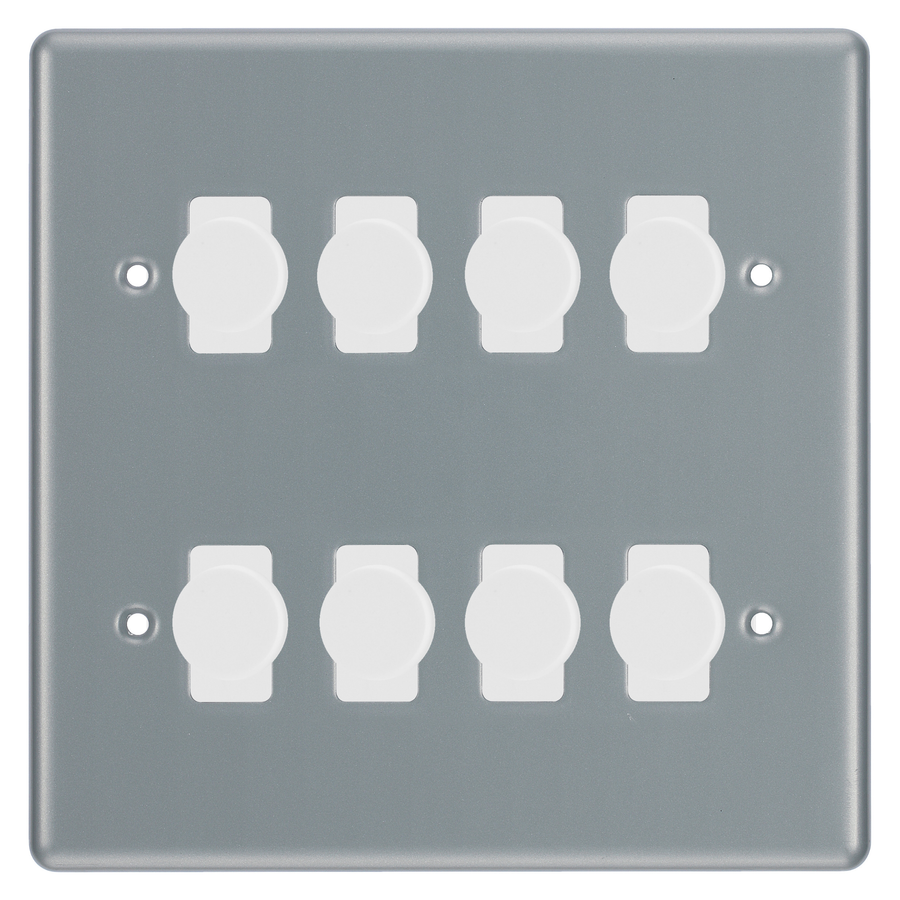

BG Metal Clad 8 Gang Switch 8x LED Dimmer Custom Grid
The Metal Clad range from BG is manufactured in heavy gauge steel and finished with epoxy powder coating, giving a rugged scratch resistant plate for environments where a domestic finish does not last.
The dimmer module is switchable between trailing and leading edge, so it suits dimmable LED, halogen and incandescent lamps. Soft start, smooth dimming and silent operation, with overload protection that turns the lights down or off if too many lamps or transformers are connected. Please check that your bulbs are marked dimmable before purchasing.
Please note that this switch will come in a grid format.
You will be sent the following parts all supplied by BG:
- RFR34 - 2x 3 & 4 Gang Grid Yoke Frame
- RMC8 - 1x 8 Gang Cover Plate
- RDLT - 8x Dimmer Switch
Suitable for flush wall mounting, or surface mount with metal clad boxes. Back box not supplied.
| Dimmer Module Technical Specifications | |
| Standard(s) | BS EN 60669-2-1 |
| Voltage | 200-250V AC |
| Load Rating (Max/Min per module) | |
| Dimmable LED | 5-100W |
| Tungsten/Incandescent | 5-200W |
| Halogen | 20-200W |
| Dimmable Compact Flourescent (CFL) | 5-100W |
| Type | Switchable – Trailing or Leading Edge |
| Terminal Capacity | 4 x 1mm² 4 x 1.5mm² 2 x 2.5mm² & 1 x 4.0mm² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 25mm |
