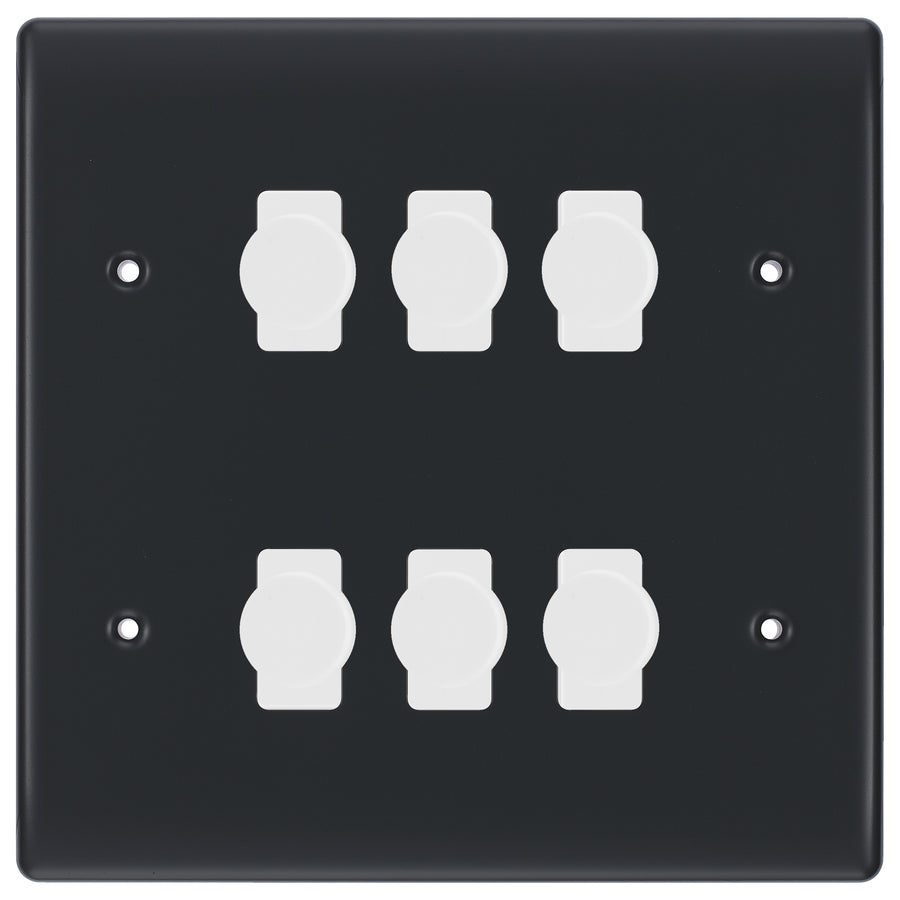

This Part M grid panel combines six intelligent dual mode dimmers on a single graphite front plate with white control dials.
Part M of the Building Regulations requires that switches can be seen and located easily by people with impaired vision, and contrast is how that is achieved. The graphite plate stands out against a light-coloured wall and the white dials stand out against the plate. There is no visible plastic around the control dials and the screws are colour matched, so nothing interrupts the contrast. The front plate matches the power products across the Part M range.
Key Features & Specifications
Intelligent Dual Mode Dimmer Modules (x6)
- Smooth & Silent: Provides smooth control of light levels with silent operation across six independent channels.
- Dual Mode: Switchable between trailing and leading edge, making it compatible with dimmable LED, halogen, and incandescent lamps.
- Soft Start: Brings lights to the set level in approximately one second, extending lamp life.
- Flicker Elimination: Supports lower wattage lamps to prevent flickering.
- Overload Protection: Automatically dims or shuts off lights if the load limit is exceeded to prevent failure.
- Control: 2-way push on/off operation with a rotary dial per dimmer.
- Note: Please verify that all connected lamps are marked as dimmable.
Installation & Mounting
- Grid Format: Modules locate and clip directly into the grid frames with captive backed-out terminal screws for fast installation.
- Back Box Requirement: Requires a standard UK back box with a minimum depth of 25mm.
Included Parts (Supplied by BG)
- RFR34: 2x 3 & 4 Gang Grid Yoke Frame
- RPM6: 1x 6 Module Part M Front Plate
- RDLT: 6x Intelligent Dual Mode Dimmer Module
