Description

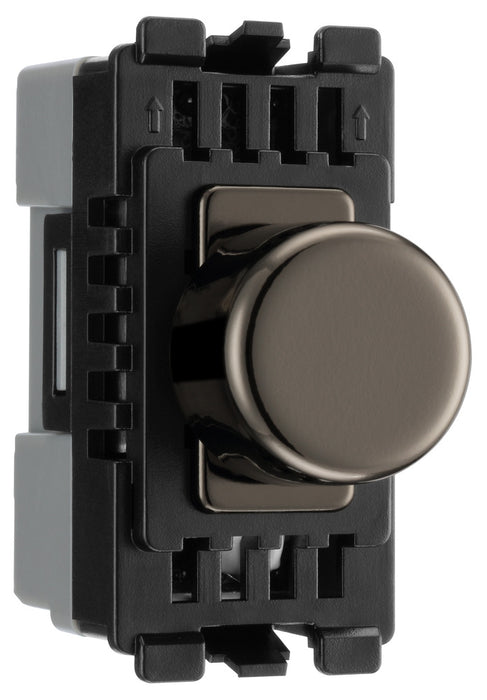

BG RBNDLT Nexus Grid Black Nickel 2 Way 150W Trailing Edge Dimmer Module
Please Note:
BG has replaced the older RBNDTR with the current model RBNDLT, which is the model we supply.
About Product:
- Simple secure 'locate & clip' fitting to frame
- Switchable Dimmer module for choice of trailing or leading
- Soft start brings the lights to a set level in around 1 second and extends the life of lamps
- Smooth dimming control with silent operation - no noise when dimming
- Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
- Support for lower wattage lamps eliminates flicker
- 2 way push on/off with rotary control
- Suitable for dimmable LED, Halogen and Incandescent lamps
- Captive backed out terminal screws for fast installation
- Module to be installed with Grid frame and plate
The Grid module range from British General allows you to build your own module configuration with a variety of combinations and finishes. This dimmer module allows you to control your light levels and set the mood, with soft-start, smooth dimming control and silent operation. Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected. Suitable for dimmable LED, halogen and incandescent lighting.
Specifications & downloads
| General Colour | Black Nickel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 2 x 1.0, 2 x 1.5 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Inline |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Rotary |
| Switch Type (Ways & Poles) | Two Way |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 25 |
Downloads
