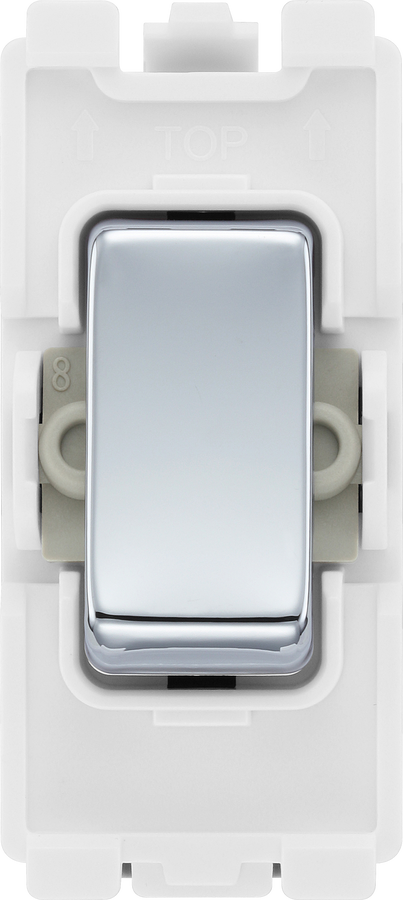

BG RPC12 Nexus Grid Polished Chrome 20AX 2 Way 1 Pole Switch Module
About Product:
- Rating: 20 Amp, 20AX Inductive
- 2 Way, single pole
- Polished Chrome finish
- Minimum mounting box depth: 25mm
- Terminal capacity: 4 x 1mm², 4 x 1.5mm², 2 x 2.5mm² & 1 x 4.0mm²
The BG Electrical Nexus Grid RPC12 is a polished chrome single-pole 2-way switch module, rated at 20AX.
A versatile switch module, the RPC12 is rated at 20AX, meaning it is suitable not only for everyday lighting purposes, but can also handle the inductive current from electric motors and fluorescent tubing.
It’s easily fitted into a Nexus Grid frame and front plate – simply use the ‘locate & clip’ fitting which securely holds the module onto the frame.
To aid installation, the RPC12 comes with captive terminal screws, helping to simplify wiring without the use of solder. A minimum back box depth of 25mm is required for this module.
| General Colour | Polished Chrome |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
