Description

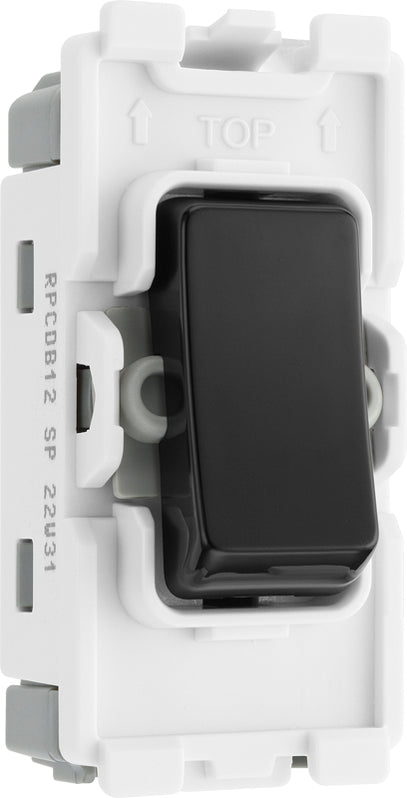

Evolve Grid Black 20A 20AX 2 Way 1 Pole Switch Module
About Product:
- 20A rating - no derating for inductive
- 2 way switch configuration
- Single pole
- Clips securely to frame - see below
- Black rocker - white finish available
- Clearly marked terminals with backed out captive screws for easy installation
- Requires 25mm minimum depth mounting box
- Terminal capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm²
The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
This 20A two way single white switch module is ideal for operating lights from 2 locations, such as at the top and bottom of the stairs or at either end of a hallway.
The black finish matches the black frames on the BG Evolve frontplates.
Specifications & downloads
| General Colour | Black |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
Downloads
Customer reviews
BG RPCDB12 Evolve Grid Black 20A 20AX 2 Way 1 Pole Switch Module
Regular price
£1.36
