Description

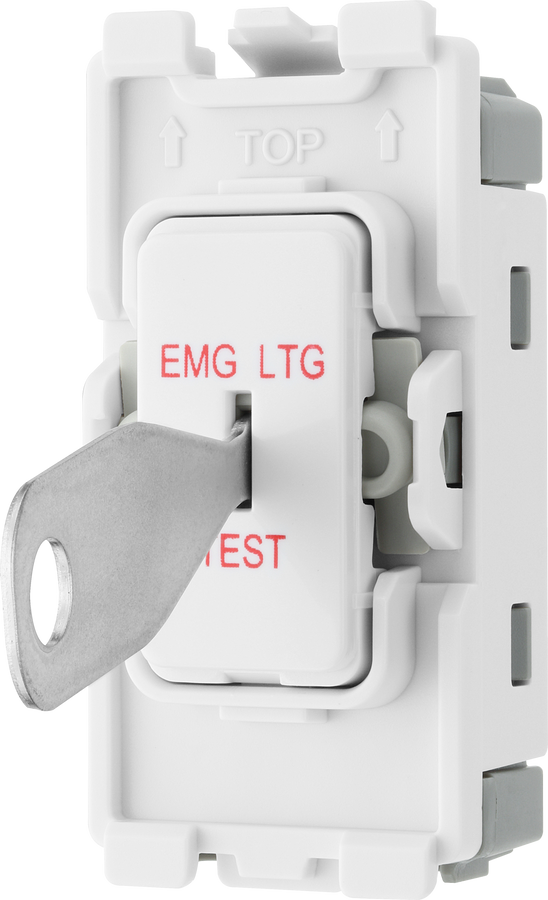

Evolve Grid White 20A 20AX 2 Way 1 Pole EMG LTG TEST Secret Key Switch Module
About Product:
- 20A rating - no derating for inductive
- 2 way switch configuration
- Single pole
- Supplied with key - spares available (see below)
- Clips securely to frame - see below
- White insert marked with EMG LTG TEST - black finish available
- Clearly marked terminals with backed out captive screws for easy installation
- Requires 25mm minimum depth mounting box
- Terminal capacity: 4 x 1.0mm², 4 x 1.5mm², 2 x 2.5mm², 1 x 4.0mm²
The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes.
This 20A single pole switch module is marked 'EMG LTG TEST' and is ideal for use in public places to prevent unauthorised persons interacting with the switch.
The white finish matches the white frames on the BG Evolve brushed steel and pearlescent white Grid frontplates.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Not Applicable |
| Switch Style Type | Key |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 25 |
