Description

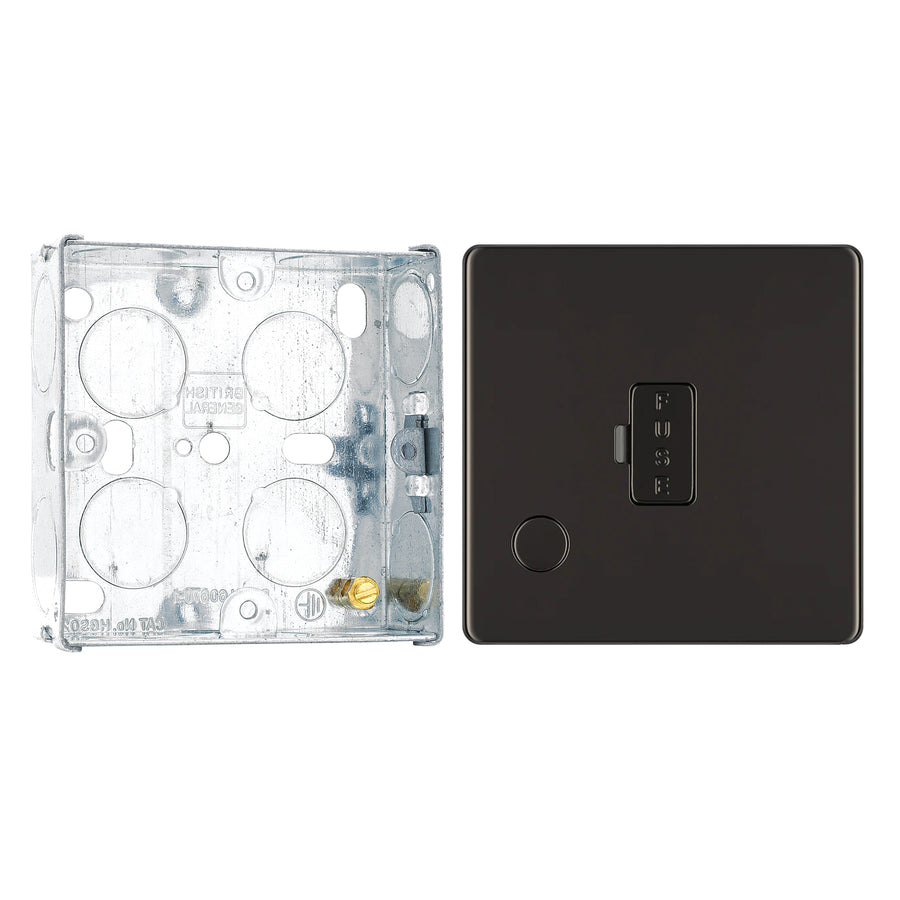

BG Screwless Black Nickel 13A Flex Unswitched Fused Connection Unit FBN55 with 25mm Steel Back Box
This 13A fused and unswitched connection unit from British General provides an outlet from the mains containing the fuse ideal for spur circuits and hardwired appliances. The backplate has an optional flex outlet with removable blanking piece at the lower edge. This black nickel FCU has a screwless flat plate that clips on and off and sits flush against the wall, making it ideal for modern interiors.
The 25mm steel back box is designed for flush wall installation and is suitable for mounting electrical accessories. Manufactured from durable steel, it includes M20 knockouts on the sides and base, four fixing lugs, and an earth bonding terminal for safe installation.
Specifications & downloads
| General Colour | Black Nickel |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | No |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | Black |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Flex Out | Yes |
| Flex Out Position | Front Face |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 0 |
| Screw Caps | No |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 25 |
