Description

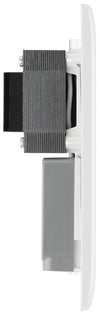

BG 820 Moulded Round Edge | White | 115-230V Dual Voltage Shaver Socket
- Dual voltage 115/240 V
- Easy to install, supplied with fixing screws and installation instructions
- Suitable for shavers and electric toothbrushes
- In line terminals for ease of installation
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Minimum mounting box depth 47mm
- Certified to BS EN 61558, BS 4573
This Nexus 800 series white moulded dual voltage shaver socket from British General is suitable for use with 240V and 115V shavers and electric toothbrushes. The moulded white front-plate has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed with captive screws for ease of installation, and finished with softly rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 2 x 4 , 3 x 2.5 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 1 |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | No |
| Number of Sockets | 2 |
| Socket Type | Z - 2P UK Shaver |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | H-120.6 |
| IP Rating | IP41 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
Downloads
Customer reviews
BG 820 Moulded Round Edge | White | 115-230V Dual Voltage Shaver Socket
Regular price
£14.47
Sale
