Description

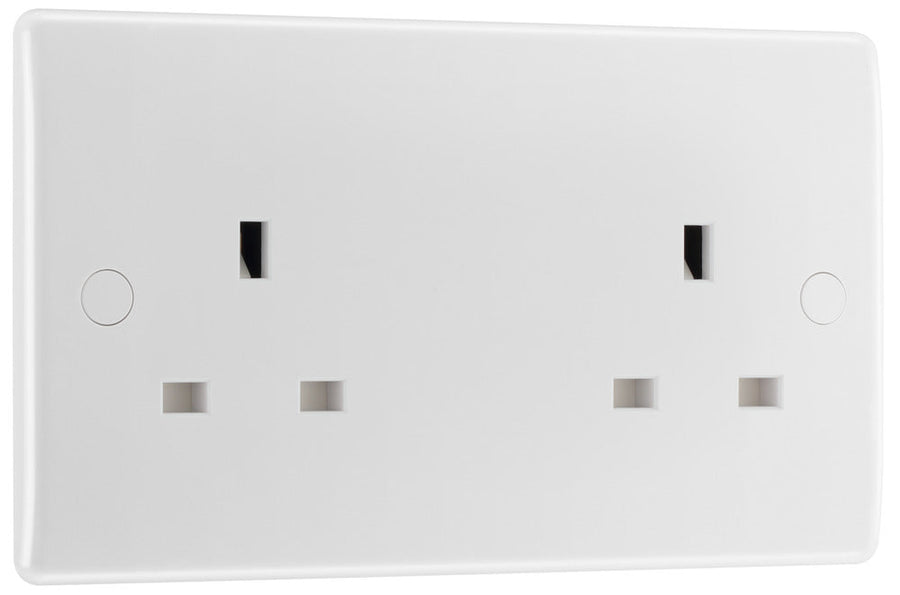

BG 824 Moulded Round Edge | White | 2 Gang 13A Unswitched Socket
- 13A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Angled in-line colour coded terminals provide easy access for quick installation
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- Minimum mounting box depth 25mm
- Certified to BS1363-2
This Nexus 800 series white moulded unswitched double socket from British General is always on when a plug is inserted so it doesn’t need a switch to control the power. Great for use on appliances that have control switches elsewhere like a television or kettle. Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases.
Designed with angled in-line terminals and captive screws for ease of installation, and finished with softly rounded edges and screw caps for a sleek appearance.
Designed with angled in-line terminals and captive screws for ease of installation, and finished with softly rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 2 x 6.0 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 0 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | N/A |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
