Description

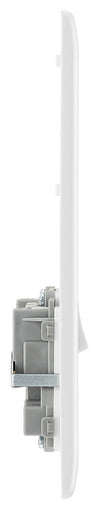

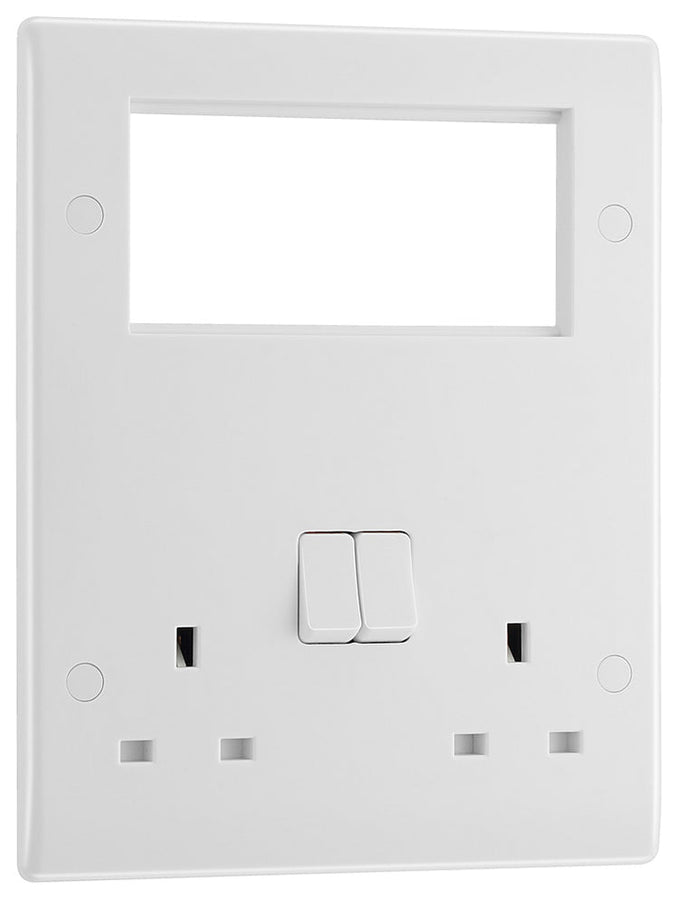

BG 822EM4 Rounded Edge | White | 2 Gang 4 Module Euro Module Combination Plate
- 13A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Allows customisation of socket combinations including power, telecom, data and co-axial solutions
- For use with the BG Electrical Euro Module range
- Angled in-line colour coded terminals provide easy access for quick installation
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- Minimum mounting box depth 47mm
This Nexus 800 series white moulded combination plate from British General combines a double 13A switched socket with a 4 module aperture where a variety of different power solutions such as aerial telecom and additional power socket modules can be fitted. Ideal for use where different power outlets are required in one location.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed for use with BG Electrical Euro modules and finished with soft rounded edges and screw caps for a premium appearance.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed for use with BG Electrical Euro modules and finished with soft rounded edges and screw caps for a premium appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 47 |
| Terminal Capacity (# x mm²) | 2 x 6.0, 3 x 2.5, 3 x 4 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-60.3 X H-100 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
