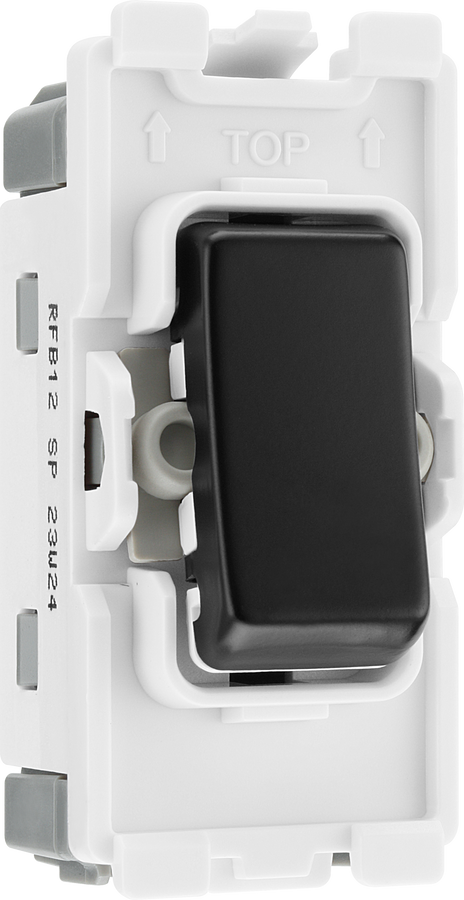

BG RFB12 Nexus Grid Matt Black 20AX 2 Way 1 Pole Switch Module
About Product:
- Simple secure 'locate & clip' fitting to frame
- 2 way switching allows for a second switch position in a circuit
- Captive backed out terminal screws for fast installation
- Module to be installed with Grid frame and plate
- Single pole
- Alternative legend rocker covers available
The Grid modular range from British General allows you to build your own module configuration with a variety of combinations and finishes. This 20A two way matt black finish switch module is ideal for operating lights from 2 locations such as at the top and bottom of the stairs or at either end of a hallway, and can be combined with any Grid range plate.
Product Details
Dimensions
| Unpacked Height (mm) | 54 |
| Unpacked Width (mm) | 25 |
| Unpacked Depth (mm) | 26 |
| Minimum Box Depth (mm) | 25 |
| Front Plate Material Thickness (mm) | N/A |
| Front Plate Height (mm) | 6.9 |
Pack
| Packed Width (mm) | 25 |
| Packed Depth (mm) | 26 |
| Packed Height (mm) | 54 |
| Packed Gross Weight (kg) | 0.025 |
| Package Pack Type | Printed Bag |
| Package Hanging | No |
| Package EAN | 5050765238830 |
Downloads
Specifications & downloads
| General Colour | Matt Black |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 1 x 4, 2 x 2.5, 4 x 1.0 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | No |
| Fixing Screws Supplied | Not Applicable |
| Terminal Arrangement | Inline |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | No |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| IP Rating | IP20 |
| Switch State | On/Off |
| Warranty (years) | 25 |
