Description

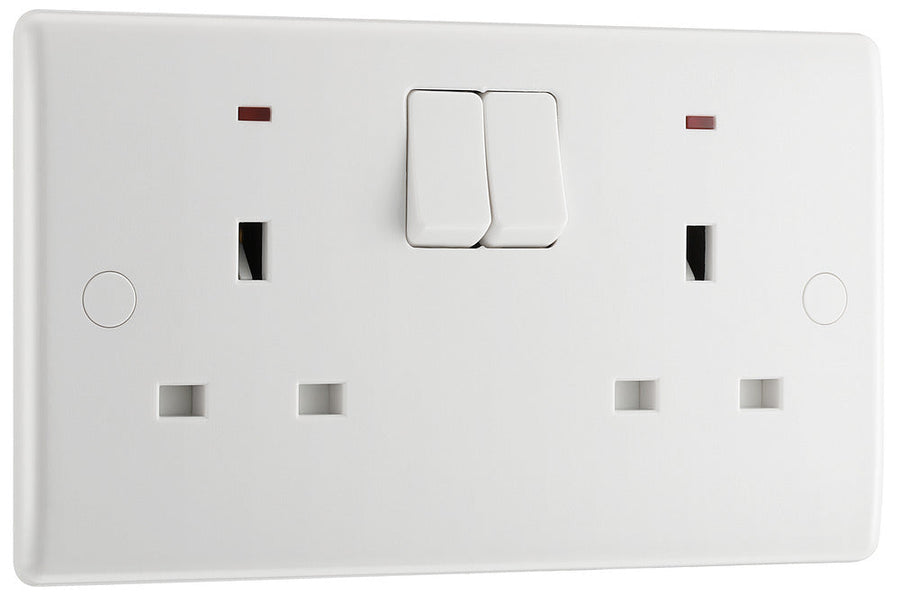

BG 826 Moulded Round Edge | White | 2 Gang 13A 1 Pole Neon Switched Socket
- 13A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Angled in-line terminals with captive screws provide easy access for quick installation
- Screw covers for sleek appearance
- Twin earth fitted as standard to allow a double earth facility for installations requiring high integrity protective connection Ref. BS 7671:2008
- LED power Indicator, reliable and low power
- Minimum mounting box depth 25mm
- Certified to BS1363-2
This Nexus 800 series white moulded 13A double switched socket with indicator from British General has a high resistance to fading discolouration and scratches, with anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Designed with angled in-line terminals and captive screws for ease of installation, and finished with softly rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 3 x 2.5, 3 x 4, 2 x 6.0 |
| Front Plate Insert Colour | Not Applicable |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled, Inline |
| Terminals with Colour Coding Print | Yes |
| Number of Sockets | 2 |
| Socket Type | G-3P UK Ireland Hong Kong 220-240V 13A |
| Number of Switches | 2 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Single Pole |
| Fixing Centres (mm) | W-120.6 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Warranty (years) | 30 |
