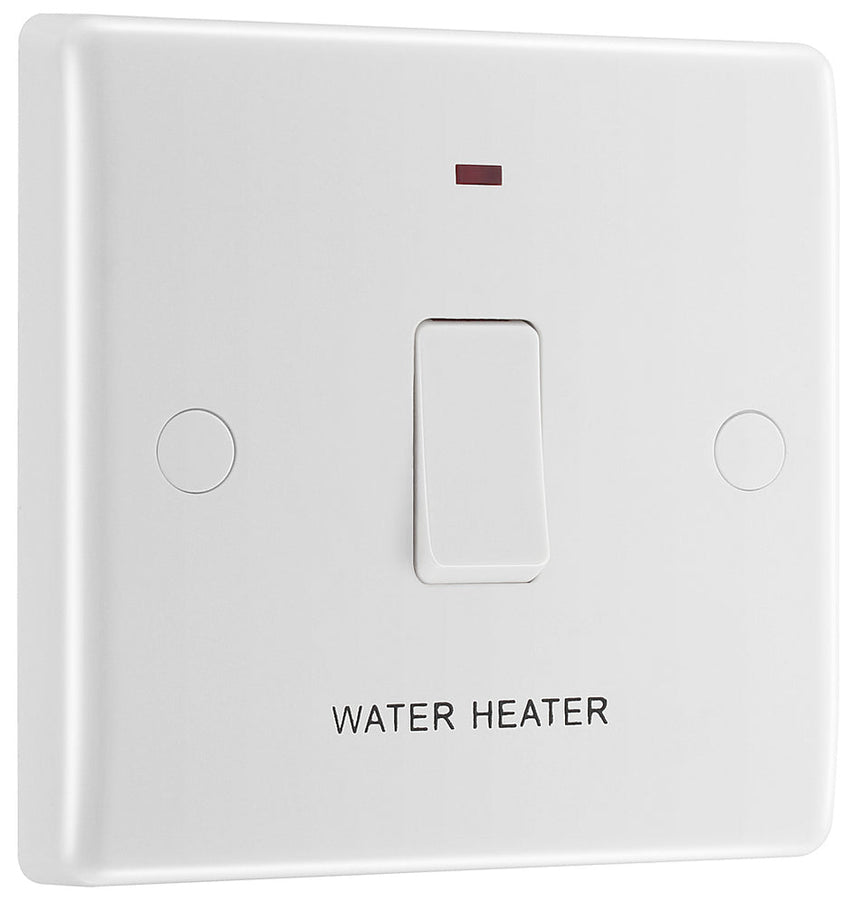

BG 833WH White Round Edge 20A DP Switch marked Water Heater + Neon + Cable Outlet
- 20A Rated
- Easy to install, supplied with fixing screws and installation instructions
- Marked 'water heater' with rounded edge cable entry at lower edge, removable blanking piece and reversible cord-grip
- Colour coded terminals with captive screws provide easy access for quick installation
- Screw covers for sleek appearance
- LED power Indicator, reliable and low power
- Double Pole switching for the peace of mind of a safer installation
- Minimum mounting box depth 25mm
This Nexus 800 series white moulded 20A double pole switch with indicator from British General is marked 'Water Heater' and has a flex outlet with knock-out and reversible cord grip to accommodate different cable sizes in the bottom edge. Its moulded white front-plate has a high resistance to fading discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases.
Designed with colour coded terminals and captive screws for ease of installation, and finished with soft rounded edges and screw caps for a premium appearance.
Designed with colour coded terminals and captive screws for ease of installation, and finished with soft rounded edges and screw caps for a premium appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 25 |
| Terminal Capacity (# x mm²) | 2 x 2.5, 1 x 4, 1 x 6 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Double Pole |
| Switch Location Position | Wall |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
