Description

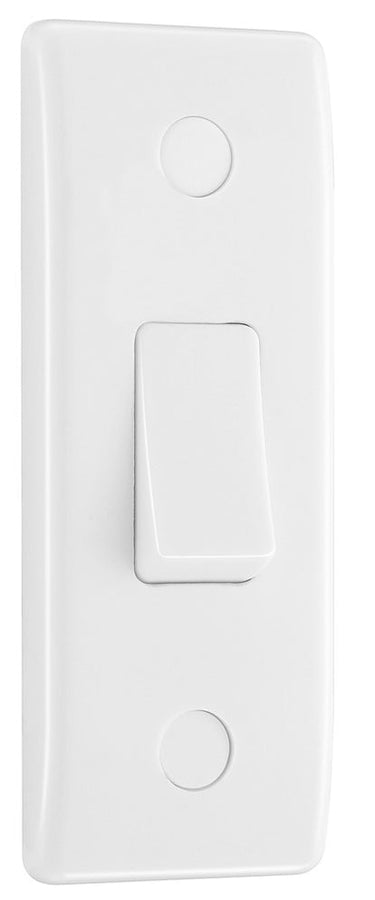

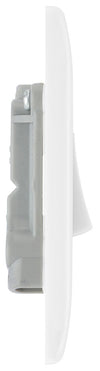

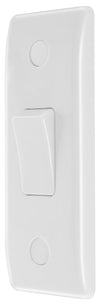

BG 847 Moulded Round Edge | White | 1 Gang 10A 2 Way Architrave Switch
- 20A 16AX Rated
- Easy to install, supplied with fixing screws and installation instructions
- 2 way switching allows for a second switch position in a circuit
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Minimum mounting box depth 16mm
- Certified to BS60669-1
This Nexus 800 series white moulded 20A 16AX two way architrave light switch from British General is ideal for areas where door frames are placed close together or in tight corners due to its narrow backplate. The 2 way switch allows you to operate lights from 2 locations, such as at the top and bottom of the stairs or at either end of a hallway.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with soft rounded edges and screw caps for a sleek appearance.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with soft rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Minimum Box Depth (mm) | 16 |
| Terminal Capacity (# x mm²) | 4 x 1.0, 4 x 2.5, 2 x 2.5, 1 x 4 |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Fixing Screws Supplied | Yes |
| Terminal Arrangement | Not Applicable |
| Terminals with Colour Coding Print | No |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Style Type | Rocker |
| Switch Type (Ways & Poles) | Two Way |
| Switch Location Position | Wall |
| Fixing Centres (mm) | H-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 220-240 |
| Switch State | On/Off |
| Warranty (years) | 30 |
Downloads
Customer reviews
BG 847 Moulded Round Edge | White | 1 Gang 10A 2 Way Architrave Switch
Regular price
£2.30
Sale
