Description

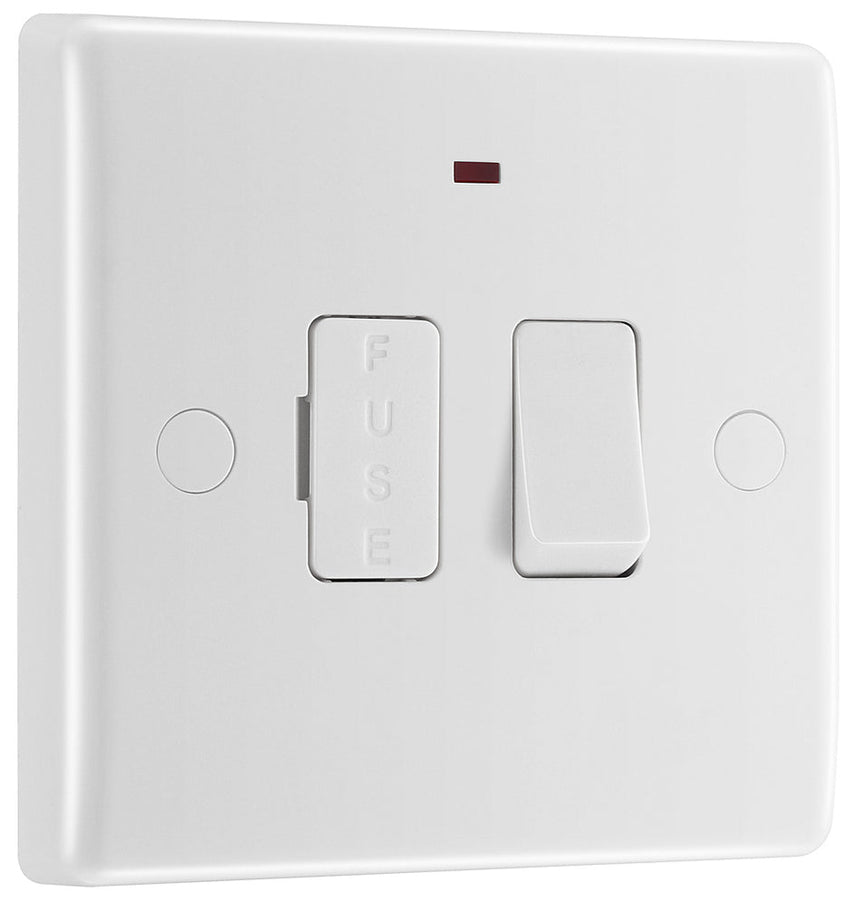

BG 853 Moulded Round Edge | White | 13A 2 Pole Flex Outlet Neon Switched Fused Connection Unit
- 13A Rated
- Easy to install supplied with fixing screws and installation instructions
- Ideal for spur circuits and hard wired power appliances
- Angled colour coded terminals for ease of installation
- LED power Indicator reliable and low power and integrated flex outlet has a cord grip in the lower edge with a removable knockout
- Captive screws prevent screw loss
- Screw covers for sleek appearance
- Minimum mounting box depth 35mm
This Nexus 800 series white moulded 13A fused and switched connection unit with power indicator from British General provides an outlet from the mains containing the fuse ideal for spur circuits and hardwired appliances. The backplate has an optional flex outlet with removable blanking piece at the lower edge, and a reversible cord-grip.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with softly rounded edges and screw caps for a sleek appearance.
Its moulded white front-plate has a high resistance to fading, discolouration and scratches, with inherent anti-microbial properties proven to reduce bacterial development and inhibit the growth of infectious diseases. Finished with softly rounded edges and screw caps for a sleek appearance.
Specifications & downloads
| General Colour | White |
|---|---|
| Captive Terminal Screws | Yes |
| Backed-out Terminal Screws | Yes |
| Main Power Indicator | Yes |
| Minimum Box Depth (mm) | 35 |
| Terminal Capacity (# x mm²) | 3 x 2.5 |
| Fused | Yes |
| Fused Holder Colour | White |
| Anti-fingerprint Lacquer | No |
| Anti-microbial Property | Yes |
| Flex Out | Yes |
| Flex Out Position | Bottom Edge |
| Supplied with Mounting Box | No |
| Fixing Screws Supplied | Yes |
| Number of Earth Terminals | 2 |
| Terminal Arrangement | Angled |
| Terminals with Colour Coding Print | Yes |
| Number of Switches | 1 |
| Screw Caps | Yes |
| Switch Type (Ways & Poles) | Double Pole |
| Fixing Centres (mm) | W-60.3 |
| IP Rating | IP20 |
| Operating Voltage (V) | 250 |
| Warranty (years) | 30 |
